630-2W2-240-2N4

Active

EDAC Inc.

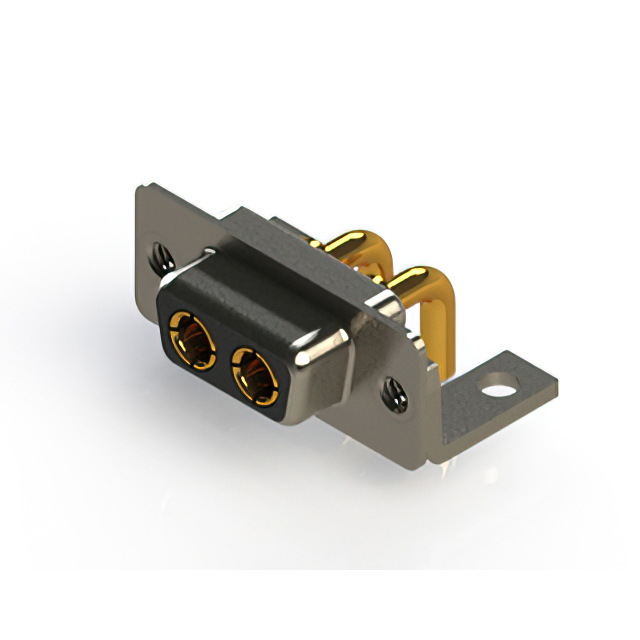

CONN D-SUB RCPT 2POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630-2W2-240-2N4

Active

EDAC Inc.

CONN D-SUB RCPT 2POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-2W2-240-2N4

Backset Spacing	13.2 mm
Backset Spacing	0.52 "
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	20 A
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2WK2, 1 (DE, E), 2V2, 2W2C, 2W2
Termination	Solder
Voltage Rating	125 VDC

630-2W2 Series

...

Part	Material Flammability Rating	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Termination	Contact Material	Color	Current Rating (Amps)	Mounting Type	Connector Type	Backset Spacing	Backset Spacing	Number of Positions	Number of Rows	Shell Size, Connector Layout	Voltage Rating	Connector Style	Contact Finish Thickness	Flange Feature	Shell Material, Finish	Dielectric Material	Features	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 630-2W2-250-1N6	UL94 V-0	Power	-55 °C	125 °C	Gold	Solder	Copper Alloy	Black	10 A	Through Hole Right Angle	Receptacle Female Sockets	13.2 mm	0.52 "	2	1	1 (DE E) 2V2 2W2 2W2C 2WK2	125 VDC	Combo D-Sub	Flash	4-40	Nickel Plated Steel	Polyester Thermoplastic
EDAC Inc. 630-2W2-250-4ND	UL94 V-0	Power	-55 °C	125 °C	Gold	Solder	Copper Alloy	Black	40 A	Through Hole Right Angle	Receptacle Female Sockets	13.2 mm	0.52 "	2	1	1 (DE E) 2V2 2W2 2W2C 2WK2	125 VDC	Combo D-Sub	Flash	M3	Nickel Plated Steel	Polyester Thermoplastic	Board Lock Mounting Brackets
EDAC Inc. 630-2W2-640-4N6	UL94 V-0	Power	-55 °C	125 °C	Gold	Solder	Copper Alloy	Black	40 A	Through Hole Right Angle	Receptacle Female Sockets	13.2 mm	0.52 "	2	1	1 (DE E) 2V2 2W2 2W2C 2WK2	125 VDC	Combo D-Sub		4-40	Nickel Plated Steel	Polyester Thermoplastic		0.76 Ám	30 Áin
EDAC Inc. 630-2W2-240-2N1	UL94 V-0	Power	-55 °C	125 °C	Gold	Solder	Copper Alloy	Black	20 A	Through Hole Right Angle	Receptacle Female Sockets	13.2 mm	0.52 "	2	1	1 (DE E) 2V2 2W2 2W2C 2WK2	125 VDC	Combo D-Sub	Flash	Housing/Shell (Unthreaded)	Nickel Plated Steel	Polyester Thermoplastic	Shielded
EDAC Inc. 630-2W2-240-2NA	UL94 V-0	Power	-55 °C	125 °C	Gold	Solder	Copper Alloy	Black	20 A	Through Hole Right Angle	Receptacle Female Sockets	13.2 mm	0.52 "	2	1	1 (DE E) 2V2 2W2 2W2C 2WK2	125 VDC	Combo D-Sub	Flash	Board Side (M3)	Nickel Plated Steel	Polyester Thermoplastic
EDAC Inc. 630-2W2-650-4T5	UL94 V-0	Power	-55 °C	125 °C	Gold	Solder	Copper Alloy	Black	40 A	Through Hole Right Angle	Receptacle Female Sockets	13.2 mm	0.52 "	2	1	1 (DE E) 2V2 2W2 2W2C 2WK2	125 VDC	Combo D-Sub		4-40		Polyester Thermoplastic	Board Lock Mounting Brackets	0.76 Ám	30 Áin
EDAC Inc. 630-2W2-240-2N6	UL94 V-0	Power	-55 °C	125 °C	Gold	Solder	Copper Alloy	Black	20 A	Through Hole Right Angle	Receptacle Female Sockets	13.2 mm	0.52 "	2	1	1 (DE E) 2V2 2W2 2W2C 2WK2	125 VDC	Combo D-Sub	Flash	4-40	Nickel Plated Steel	Polyester Thermoplastic
EDAC Inc. 630-2W2-240-2TB	UL94 V-0	Power	-55 °C	125 °C	Gold	Solder	Copper Alloy	Black	20 A	Through Hole Right Angle	Receptacle Female Sockets	13.2 mm	0.52 "	2	1	1 (DE E) 2V2 2W2 2W2C 2WK2	125 VDC	Combo D-Sub	Flash	Housing/Shell (M3)		Polyester Thermoplastic	Board Lock Mounting Brackets
EDAC Inc. 630-2W2-240-2N4	UL94 V-0	Power	-55 °C	125 °C	Gold	Solder	Copper Alloy	Black	20 A	Through Hole Right Angle	Receptacle Female Sockets	13.2 mm	0.52 "	2	1	1 (DE E) 2V2 2W2 2W2C 2WK2	125 VDC	Combo D-Sub	Flash	Housing/Shell (4-40)	Nickel Plated Steel	Polyester Thermoplastic	Mounting Brackets
EDAC Inc. 630-2W2-640-4T4	UL94 V-0	Power	-55 °C	125 °C	Gold	Solder	Copper Alloy	Black	40 A	Through Hole Right Angle	Receptacle Female Sockets	13.2 mm	0.52 "	2	1	1 (DE E) 2V2 2W2 2W2C 2WK2	125 VDC	Combo D-Sub		Housing/Shell (4-40)		Polyester Thermoplastic	Mounting Brackets	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 7.46

Description

General part information

630-2W2 Series

2 (Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
