5-917693-1
ActiveTE Connectivity AMP Connectors

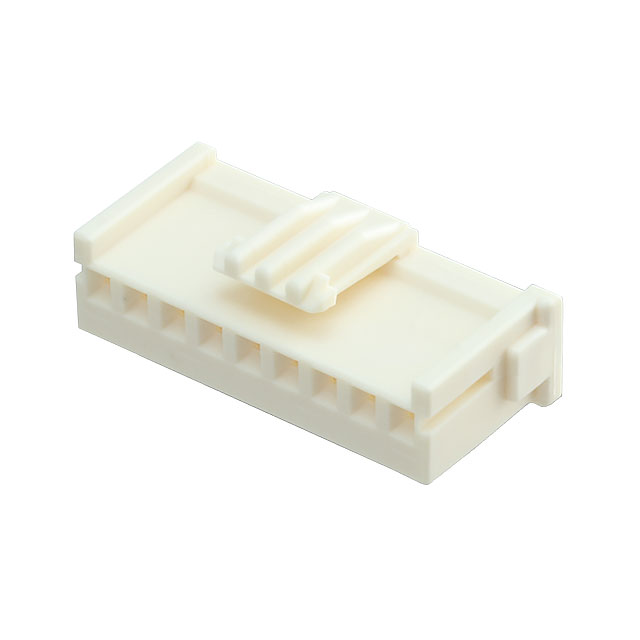

CONN PLUG HSG 9POS 2.50MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-917693-1
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 9POS 2.50MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-917693-1 | 917693 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 9 | 9 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Pitch [x] | 0.098 in | 0.098 in |
| Pitch [x] | 2.5 mm | 2.5 mm |
917693 Series
CONN PLUG HSG 9POS 2.50MM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Mounting Type | Fastening Type | Contact Type | Number of Positions | Pitch [x] | Pitch [x] | Contact Termination | Insulation Material | Connector Type | Note | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-917693-1 | -30 ░C | 105 ░C | 1 | Free Hanging (In-Line) | Locking Ramp | Female Socket | 9 | 0.098 in | 2.5 mm | Crimp | Polyamide (PA66), Nylon 6/6 | Plug | Contacts Not Included | Natural |
TE Connectivity AMP Connectors 917693-1 | -30 ░C | 105 ░C | 1 | Free Hanging (In-Line) | Locking Ramp | Female Socket | 9 | 0.098 in | 2.5 mm | Crimp | Polyamide (PA66), Nylon 6/6 | Plug | Contacts Not Included | Natural |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.38 | |
| 10 | $ 0.36 | |||
| 25 | $ 0.36 | |||
| 50 | $ 0.35 | |||
| 100 | $ 0.30 | |||
| 300 | $ 0.27 | |||
| 600 | $ 0.27 | |||
Description
General part information
917693 Series
9 Rectangular Connectors - Housings Plug Natural 0.098" (2.50mm)
