PT08P-12-10S
ActiveAmphenol Industrial Operations

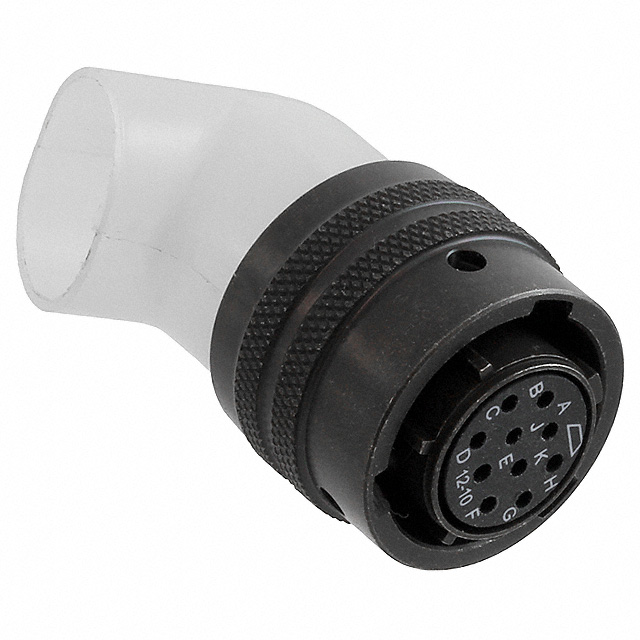

CONN PLUG FMALE 10P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
PT08P-12-10S
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 10P SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PT08P-12-10S | PT08P Series |
|---|---|---|
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial |
| Backshell Material, Plating | Olive Drab Cadmium, Aluminum | Olive Drab Cadmium, Aluminum |
| Color | Olive Drab | Olive Drab |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Coupling Nut, Potted | Coupling Nut, Potted |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Positions | 10 | 10 - 26 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, W |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | - | 16 |
| Shell Size - Insert | - | 26 |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 43.54 | |
| 10 | $ 39.96 | |||
| 100 | $ 35.09 | |||
PT08P Series
CONN PLUG FMALE 10P SOLDER CUP
| Part | Color | Insert Material | Number of Positions | Shell Material | Contact Finish - Mating | Qualification | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Shielding | Orientation | Primary Material | Connector Type | Shell Finish | Features | Mounting Type | Backshell Material, Plating | Contact Material | Shell Size - Insert [Min] | Shell Size - Insert [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations PT08P-12-10S | Olive Drab | Neoprene | 10 | Aluminum | Gold | MIL-DTL-26482 Series I | Aerospace, Industrial, Instrumentation, Mass Transit, Military | -55 °C | 125 °C | Bayonet Lock | Unshielded | N | Metal | Female Sockets, Plug | Olive Drab Chromate over Cadmium | Coupling Nut, Potted | Free Hanging (In-Line), Right Angle | Aluminum, Olive Drab Cadmium | Copper Alloy | ||
Amphenol Industrial Operations PT08P-16-26SW | Olive Drab | Neoprene | 26 | Aluminum | Gold | MIL-DTL-26482 Series I | Aerospace, Industrial, Instrumentation, Mass Transit, Military | -55 °C | 125 °C | Bayonet Lock | Unshielded | W | Metal | Female Sockets, Plug | Olive Drab Chromate over Cadmium | Coupling Nut, Potted | Free Hanging (In-Line), Right Angle | Copper Alloy | 16 | 26 |
Description
General part information
PT08P Series
10 Position Circular Connector Plug, Female Sockets Solder Cup
