Description
General part information

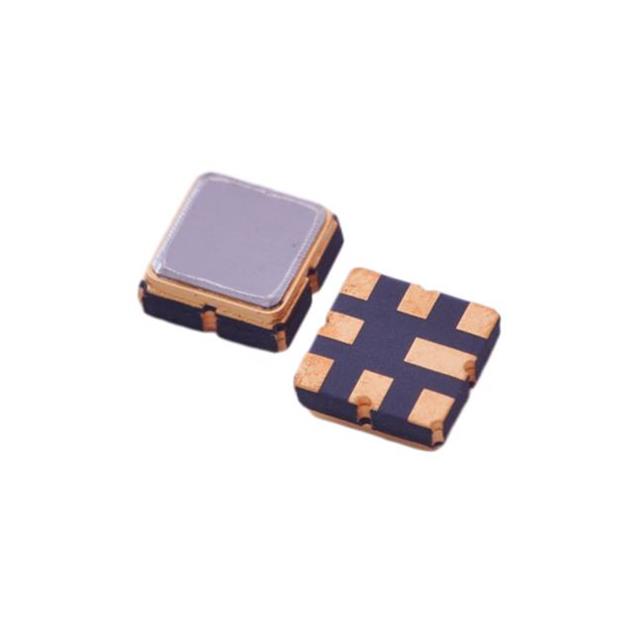

TA0300A
433.92MHz Frequency Remote Control RF SAW Filter (Surface Acoustic Wave) 3dB 1MHz Bandwidth 8-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | TA0300A |
|---|---|
| Applications | Remote Control |
| Bandwidth | 1 MHz |
| Frequency - Center | 433.92 MHz |
| Height (Max) | 0.055 in, 0.067 in |
| Insertion Loss | 3 dB |
| Mounting Type | Surface Mount |
| Package / Case | No Lead, 8-SMD |
| Size / Dimension Length | 0.15 in |
| Size / Dimension Width | 0.15 in |
