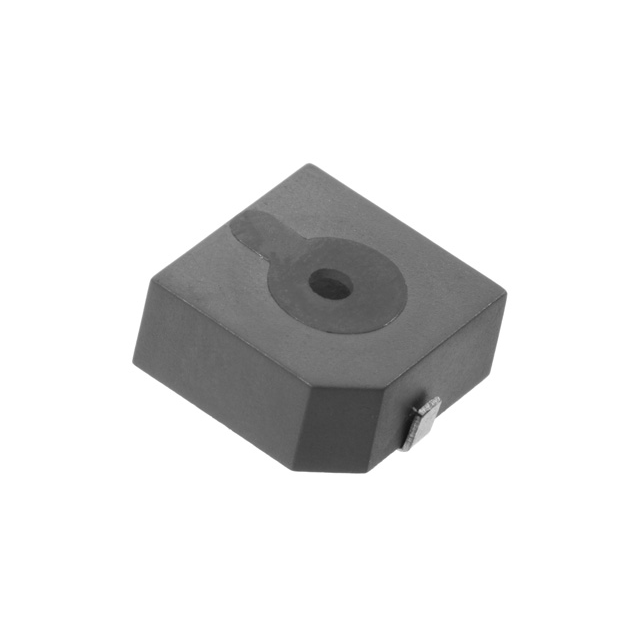

TE122401-2
ActiveDB Unlimited
BUZZER ELECTR 1.5V 12.8X12.8 SMD
TE122401-2
ActiveDB Unlimited
BUZZER ELECTR 1.5V 12.8X12.8 SMD
Description
General part information
TE122401-2
Buzzers Transducer, Externally Driven Electromechanical 1.5 V 30mA 2.4kHz 80dB @ 1.5V, 10cm Surface Mount Solder Pads
Technical Specifications
Parameters and characteristics for this part
| Specification | TE122401-2 |
|---|---|
| Current - Supply | 30 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 2.4 kHz |
| Height - Seated (Max) | 0.406 in |
| Input Type | Zero-Peak Signal |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Port Location | Top |
| Ratings | Washable |
| Size / Dimension Length | 0.504 in |
| Size / Dimension Width | 0.504 in |
| Sound Pressure Level (SPL) | 80 dB |
| Technology | Electromechanical |
| Termination | Solder Pads |
| Voltage - Rated | 1.5 VDC |
| Voltage Range (Max) | 3 V |
| Voltage Range (Min) | 1 V |
