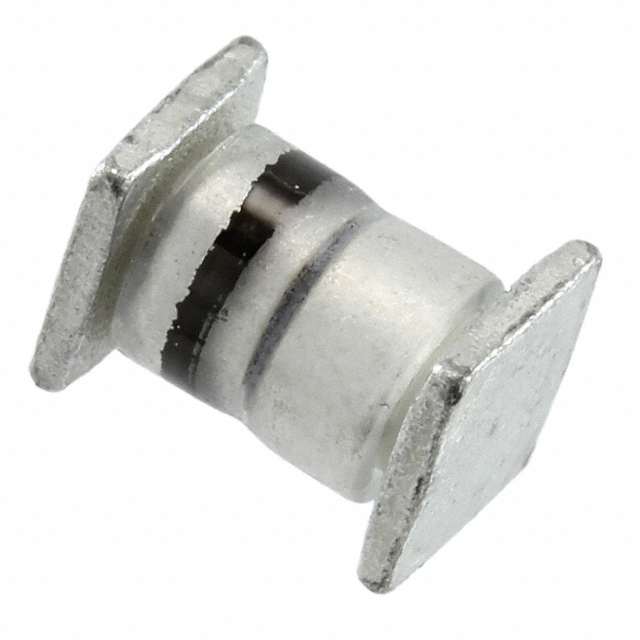

UES1301SM
ActiveMicrochip Technology
RECTIFIER DIODE SWITCHING 2-PIN 3.5A, 50V, 30NS B-MELF
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsUES1302SM
UES1301SM
ActiveMicrochip Technology
RECTIFIER DIODE SWITCHING 2-PIN 3.5A, 50V, 30NS B-MELF
Deep-Dive with AI
DocumentsUES1302SM
Technical Specifications
Parameters and characteristics for this part
| Specification | UES1301SM |
|---|---|
| Current - Average Rectified (Io) | 8 A |
| Mounting Type | Surface Mount |
| Package / Case | E, SQ-MELF |
| Reverse Recovery Time (trr) | 30 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | D-5B |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 50 V |
| Voltage - Forward (Vf) (Max) @ If | 925 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 34.85 | |
| Microchip Direct | N/A | 1 | $ 37.52 | |
| 100 | $ 34.85 | |||
| 500 | $ 33.51 | |||
| 1000 | $ 31.62 | |||
UES1301SM-Rectifier Series
Rectifier Diode Switching 2-Pin 3.5A, 50V, 30ns B-MELF
| Part | Speed | Voltage - Forward (Vf) (Max) @ If | Technology | Voltage - DC Reverse (Vr) (Max) [Max] | Package / Case | Mounting Type | Reverse Recovery Time (trr) | Current - Average Rectified (Io) | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|
Microchip Technology UES1301SM | 200 mA, 500 ns | 925 mV | Standard | 50 V | E, SQ-MELF | Surface Mount | 30 ns | 8 A | D-5B |
Description
General part information
UES1301SM-Rectifier Series
An axial leaded power rectifier useful in many switching applications. Particulary suited where very fast recovery amd low forward voltage are required.
