0800420:0007
ActivePhoenix Contact

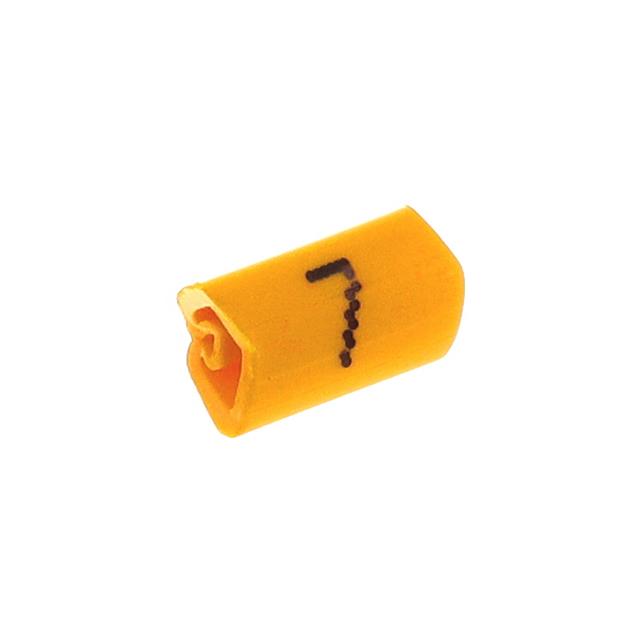

WIRE MARKER SLIP-ON YELLOW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0800420:0007
ActivePhoenix Contact
WIRE MARKER SLIP-ON YELLOW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 0800420:0007 | 0800420 Series |
|---|---|---|
| Cable Diameter [diameter] | 2.5 mm, 1.4 mm | 1.4 - 2.5 mm |
| Cable Diameter [diameter] | 0.098 in, 0.055 in | 0.055 - 0.098 in |
| Color | Yellow | Yellow |
| Legend | 7 | 9, 4, 2, 7 |
| Legend | - | 0 - 6 |
| Material | Ethylene Vinyl Acetate Copolymer (EVA) | Ethylene Vinyl Acetate Copolymer (EVA) |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -45 °C | -45 °C |
| Type | Wire Marker, Slip-On | Wire Marker, Slip-On |
0800420 Series
WIRE MARKER SLIP-ON YELLOW
| Part | Cable Diameter [diameter] | Cable Diameter [diameter] | Type | Legend | Operating Temperature [Min] | Operating Temperature [Max] | Material | Color | Legend |
|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 0800420:0005 | 1.4 mm, 2.5 mm | 0.055 in, 0.098 in | Wire Marker, Slip-On | 5 | -45 °C | 70 °C | Ethylene Vinyl Acetate Copolymer (EVA) | Yellow | |
Phoenix Contact 0800420:0009 | 1.4 mm, 2.5 mm | 0.055 in, 0.098 in | Wire Marker, Slip-On | -45 °C | 70 °C | Ethylene Vinyl Acetate Copolymer (EVA) | Yellow | 9 | |
Phoenix Contact 0800420:0000 | 1.4 mm, 2.5 mm | 0.055 in, 0.098 in | Wire Marker, Slip-On | 0 | -45 °C | 70 °C | Ethylene Vinyl Acetate Copolymer (EVA) | Yellow | |
Phoenix Contact 0800420:0006 | 1.4 mm, 2.5 mm | 0.055 in, 0.098 in | Wire Marker, Slip-On | 6 | -45 °C | 70 °C | Ethylene Vinyl Acetate Copolymer (EVA) | Yellow | |
Phoenix Contact 0800420:0004 | 1.4 mm, 2.5 mm | 0.055 in, 0.098 in | Wire Marker, Slip-On | -45 °C | 70 °C | Ethylene Vinyl Acetate Copolymer (EVA) | Yellow | 4 | |
Phoenix Contact 0800420:0002 | 1.4 mm, 2.5 mm | 0.055 in, 0.098 in | Wire Marker, Slip-On | -45 °C | 70 °C | Ethylene Vinyl Acetate Copolymer (EVA) | Yellow | 2 | |
Phoenix Contact 0800420:0007 | 1.4 mm, 2.5 mm | 0.055 in, 0.098 in | Wire Marker, Slip-On | -45 °C | 70 °C | Ethylene Vinyl Acetate Copolymer (EVA) | Yellow | 7 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.20 | |
| 10 | $ 0.19 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.17 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.14 | |||
| 2500 | $ 0.14 | |||
Description
General part information
0800420 Series
Wire Marker, Slip-On Yellow Ethylene Vinyl Acetate Copolymer (EVA)
