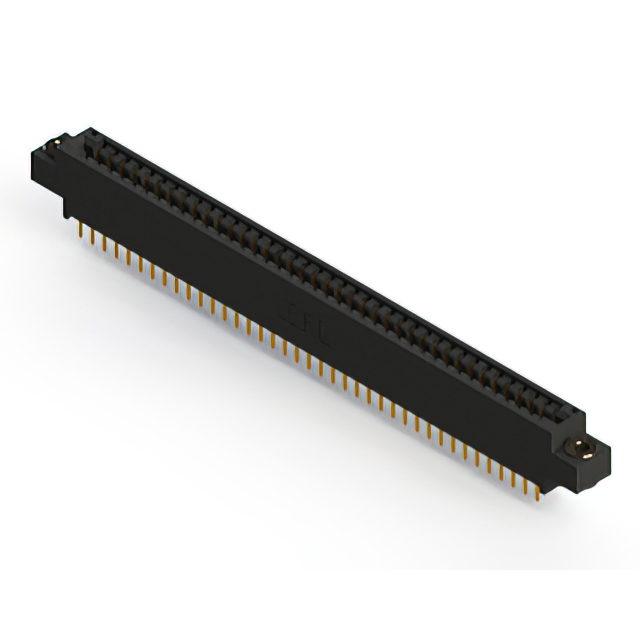

896-078-521-803

Active

EDAC Inc.

CONN EDGE DUAL FMALE 78POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

896-078-521-803

Active

EDAC Inc.

CONN EDGE DUAL FMALE 78POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 83.29
Newark	Each	1	$ 99.95
		100	$ 66.14
		250	$ 59.45
		500	$ 52.64
		1000	$ 44.63

Description

General part information

896-078 Series

78 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	896-078-521-803	896-078 Series

Card Thickness [Max]	1.78 mm	1.78 mm
Card Thickness [Max]	0.07 in	0.07 in
Card Thickness [Min]	1.37 mm	1.37 mm
Card Thickness [Min]	0.054 "	0.054 "
Card Type	Non Specified - Dual Edge	Non Specified - Dual Edge
Color	Black	Black
Contact Finish	Gold	Gold
Contact Finish Thickness	10 Áin	10 Áin
Contact Finish Thickness	0.25 Ám	0.25 Ám
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Cantilever	Cantilever
Features	-	Card Extender
Flange Feature	Top Mount Opening, Floating Bobbin	Floating Bobbin, Flush Mount, Top Opening, Unthreaded, Threaded Insert, 4-40, M3, Top Mount Opening, Side Opening, Side Mount Opening
Flange Feature	-	3.25 mm
Flange Feature	-	0.128 in
Flange Feature [diameter]	2.95 mm	2.95 - 3.96 mm
Flange Feature [diameter]	0.116 in	0.116 - 0.156 in
Gender	Female	Female
Material - Insulation	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole	Board Edge, Straddle Mount, Through Hole, Through Hole, Right Angle
Number of Positions	78	78
Number of Positions/Bay/Row [custom]	39	39
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.125 in	0.125 in
Pitch [x]	3.18 mm	3.18 mm
Read Out	Dual	Dual
Termination	Solder	Solder, Solder Eyelet(s), Wire Wrap
Termination Rows	2	2

896-078 Series

CONN EDGE DUAL FMALE 78POS 0.125

...

Part	Gender	Mounting Type	Termination Rows	Read Out	Contact Finish	Material - Insulation	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Color	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Card Type	Number of Positions/Bay/Row [custom]	Termination	Features	Pitch [x]	Pitch [x]	Number of Positions	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]
EDAC Inc. 896-078-560-203	Female	Board Edge, Straddle Mount	2	Dual	Gold	Polyphenylene Sulfide (PPS)	0.116 in	Floating Bobbin, Flush Mount	2.95 mm	Black	Cantilever	10 Áin	0.25 Ám	Copper Alloy	Non Specified - Dual Edge	39	Solder	Card Extender	0.125 in	3.18 mm	78	2	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 896-078-522-204	Female	Through Hole	2	Dual	Gold	Polyphenylene Sulfide (PPS)	0.156 in	Flush Mount, Top Opening, Unthreaded	3.96 mm	Black	Cantilever	10 Áin	0.25 Ám	Copper Alloy	Non Specified - Dual Edge	39	Solder		0.125 in	3.18 mm	78	2	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 896-078-559-208	Female	Through Hole, Right Angle	2	Dual	Gold	Polyphenylene Sulfide (PPS)		4-40, Flush Mount, Threaded Insert, Top Opening		Black	Cantilever	10 Áin	0.25 Ám	Copper Alloy	Non Specified - Dual Edge	39	Solder		0.125 in	3.18 mm	78	2	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 896-078-556-207	Female	Board Edge, Straddle Mount	2	Dual	Gold	Polyphenylene Sulfide (PPS)		Flush Mount, M3, Threaded Insert, Top Opening		Black	Cantilever	10 Áin	0.25 Ám	Copper Alloy	Non Specified - Dual Edge	39	Solder	Card Extender	0.125 in	3.18 mm	78	2	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 896-078-558-202	Female	Through Hole, Right Angle	2	Dual	Gold	Polyphenylene Sulfide (PPS)	0.128 "	Flush Mount, Top Opening, Unthreaded	3.25 mm	Black	Cantilever	10 Áin	0.25 Ám	Copper Alloy	Non Specified - Dual Edge	39	Solder		0.125 in	3.18 mm	78	2	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 896-078-558-207	Female	Through Hole, Right Angle	2	Dual	Gold	Polyphenylene Sulfide (PPS)		Flush Mount, M3, Threaded Insert, Top Opening		Black	Cantilever	10 Áin	0.25 Ám	Copper Alloy	Non Specified - Dual Edge	39	Solder		0.125 in	3.18 mm	78	2	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 896-078-500-803	Female	Through Hole	2	Dual	Gold	Polyphenylene Sulfide (PPS)	0.116 in	Floating Bobbin, Top Mount Opening	2.95 mm	Black	Cantilever	10 Áin	0.25 Ám	Copper Alloy	Non Specified - Dual Edge	39	Solder Eyelet(s)		0.125 in	3.18 mm	78	2	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 896-078-556-803	Female	Board Edge, Straddle Mount	2	Dual	Gold	Polyphenylene Sulfide (PPS)	0.116 in	Floating Bobbin, Top Mount Opening	2.95 mm	Black	Cantilever	10 Áin	0.25 Ám	Copper Alloy	Non Specified - Dual Edge	39	Solder	Card Extender	0.125 in	3.18 mm	78	2	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 896-078-555-808	Female	Board Edge, Straddle Mount	2	Dual	Gold	Polyphenylene Sulfide (PPS)		4-40, Threaded Insert, Top Mount Opening		Black	Cantilever	10 Áin	0.25 Ám	Copper Alloy	Non Specified - Dual Edge	39	Solder Eyelet(s)	Card Extender	0.125 in	3.18 mm	78	2	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 896-078-556-201	Female	Board Edge, Straddle Mount	2	Dual	Gold	Polyphenylene Sulfide (PPS)				Black	Cantilever	10 Áin	0.25 Ám	Copper Alloy	Non Specified - Dual Edge	39	Solder	Card Extender	0.125 in	3.18 mm	78	2	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in
