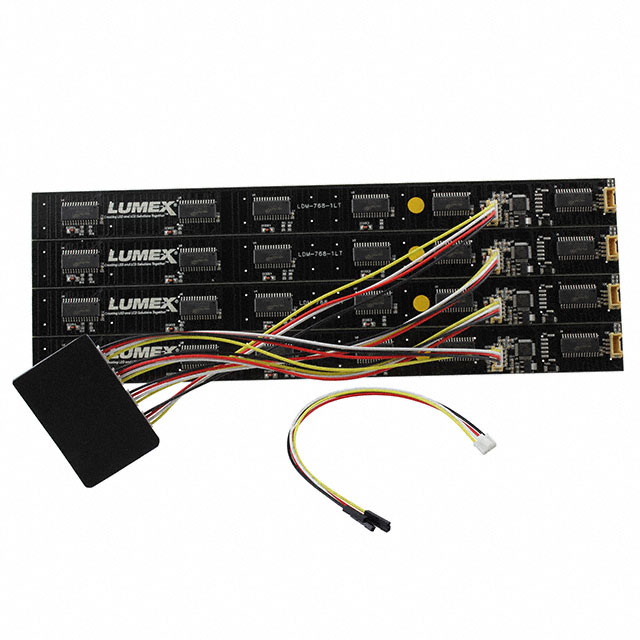

LDM-768-1LT-Y4

Active

Lumex Opto/Components Inc.

LED MATRIX 96X32 3.78" YELLOW

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED MATRIX 96X32 3.78" YELLOW

Technical Specifications

Parameters and characteristics commom to parts in this series

LED MATRIX 96X8 0.94" YELLOW

Part	Voltage - Forward (Vf) (Typ)	Color	Configuration [y]	Configuration [x]	Millicandela Rating	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]
Lumex Opto/Components Inc. LDM-768-1LT-Y1	2 V	Yellow	8	96	40 mcd	0.94 in	24 mm	10.2 mm	288 mm	0.4 "	11.34 "
Lumex Opto/Components Inc. LDM-768-1LT-Y4	2 V	Yellow	32	96	40 mcd	3.78 in	96 mm		288 mm		11.34 "
Lumex Opto/Components Inc. LDM-768-1LT-G1	3.3 V	Green	8	96	295 mcd	0.94 in	24 mm	10.2 mm	288 mm	0.4 "	11.34 "
Lumex Opto/Components Inc. LDM-768-1LT-R1	2 V	Red	8	96	56 mcd	0.94 in	24 mm	10.2 mm	288 mm	0.4 "	11.34 "
Lumex Opto/Components Inc. LDM-768-1LT-R4	2 V	Red	32	96	56 mcd	3.78 in	96 mm		288 mm		11.34 "
Lumex Opto/Components Inc. LDM-768-1LT-G4	3.3 V	Green	32	96	295 mcd	3.78 in	96 mm		288 mm		11.34 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Dot Matrix Display Module 96 x 32 Yellow 2V 11.34" L x 3.78" W (288.00mm x 96.00mm)

Technical documentation and resources

No documents available
