Description
General part information

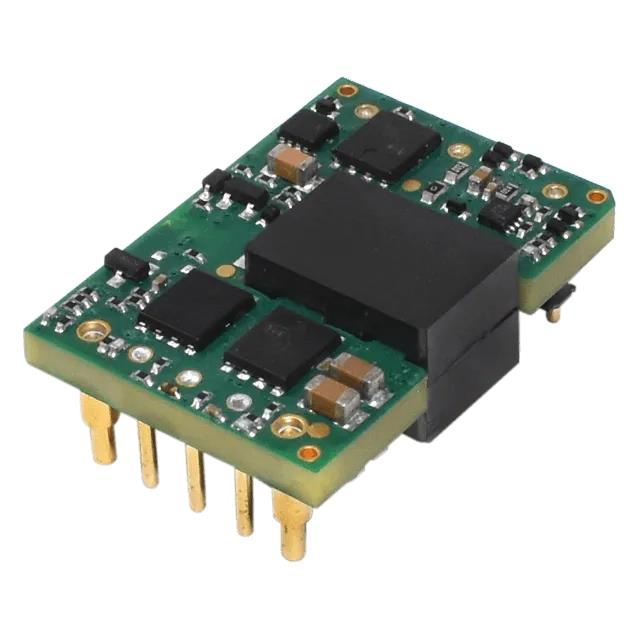

PQC75-48-S5-OH
Isolated Module DC DC Converter 1 Output 5V 15A 36V - 75V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PQC75-48-S5-OH |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, UKCA, cURus |
| Control Features | Active High, Enable |
| Current - Output (Max) | 15 A |
| Efficiency | 92 % |
| Features | Heat Sink, Adjustable Output, Remote On/Off, Remote Sense |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Sixteenth Brick |
| Package Name | Sixteenth Brick |
| Power (Watts) | 75 W |
| Size / Dimension Height | 0.51 in |
| Size / Dimension Length | 1.3 in |
| Size / Dimension Width | 0.9 in |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) | 75 V |
| Voltage - Input (Min) | 36 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 5 V |
