T4142012051-000
ActiveTE Connectivity AMP Connectors
CONN RCPT MALE 5POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4142012051-000 | T41420 Series |
|---|---|---|
| Applications | Industrial | Industrial |
| Color | Silver | Silver |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 3 µin | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm | 0.076 µm |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 4 A | 1.5 - 4 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut, Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Positions | - | 2 - 12 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | A | A |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shell Size - Insert | M12-5 | M12-2, M12-12, M12-8, M12-5, M12-3 |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Solder |
| Voltage Rating | 60 VDC | 30 - 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.51 | |
| 10 | $ 4.80 | |||
| 25 | $ 4.68 | |||
| 50 | $ 4.55 | |||
| 100 | $ 4.45 | |||
T41420 Series
CONN RCPT MALE 2POS GOLD SOLDER
| Part | Orientation | Termination | Number of Positions | Shell Material | Primary Material | Current Rating (Amps) | Insert Material | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size - Insert | Mounting Feature | Color | Shell Finish | Ingress Protection | Material Flammability Rating | Shielding | Voltage Rating | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Mounting Type | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4142012021-000 | A | Solder | 2 | Copper Alloy | Metal | 4 A | Polyamide (PA66), Nylon 6/6 | Copper Alloy | 85 °C | -40 °C | M12-2 | Bulkhead - Rear Side Nut | Silver | Nickel | IP67 - Dust Tight, Waterproof | UL94 V-0 | Unshielded | 250 VDC | Male Pins, Receptacle | 3 µin | 0.076 µm | Gold | Panel Mount, Through Hole | Industrial |
TE Connectivity AMP Connectors T4142012121-000 | A | Solder | 12 | Copper Alloy | Metal | 1.5 A | Polyamide (PA66), Nylon 6/6 | Copper Alloy | 85 °C | -40 °C | M12-12 | Bulkhead - Rear Side Nut | Silver | Nickel | IP67 - Dust Tight, Waterproof | Unshielded | 30 VDC | Male Pins, Plug | Gold | Panel Mount, Through Hole | Industrial | |||
TE Connectivity AMP Connectors T4142012081-000 | A | Solder | 8 | Copper Alloy | Metal | 2 A | Polyamide (PA66), Nylon 6/6 | Copper Alloy | 85 °C | -40 °C | M12-8 | Bulkhead - Front Side Nut | Silver | Nickel | IP67 - Dust Tight, Waterproof | Unshielded | 30 VDC | Male Pins, Plug | Gold | Panel Mount, Through Hole | Industrial | |||
TE Connectivity AMP Connectors T4142012051-000 | A | Solder | Copper Alloy | Metal | 4 A | Polyamide (PA66), Nylon 6/6 | Copper Alloy | 85 °C | -40 °C | M12-5 | Bulkhead - Rear Side Nut | Silver | Nickel | IP67 - Dust Tight, Waterproof | UL94 V-0 | Unshielded | 60 VDC | Male Pins, Receptacle | 3 µin | 0.076 µm | Gold | Panel Mount, Through Hole | Industrial | |
TE Connectivity AMP Connectors T4142012031-000 | A | Solder | Copper Alloy | Metal | 4 A | Polyamide (PA66), Nylon 6/6 | Copper Alloy | 85 °C | -40 °C | M12-3 | Bulkhead - Rear Side Nut | Silver | Nickel | IP67 - Dust Tight, Waterproof | UL94 V-0 | Unshielded | 250 VDC | Male Pins, Receptacle | 3 µin | 0.076 µm | Gold | Panel Mount, Through Hole | Industrial |
Description
General part information
T41420 Series

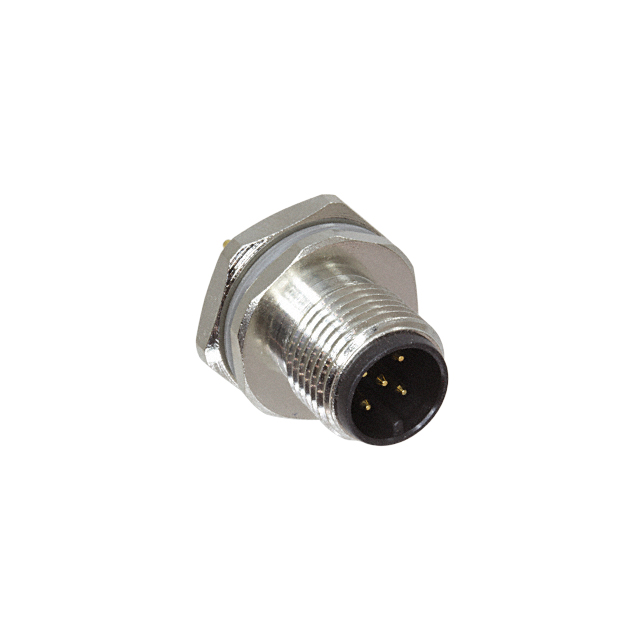

5 Position Circular Connector Receptacle, Male Pins Solder
