07190-36
ActiveMechatronics Fan Group
FAN CORD 36"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
07190-36
ActiveMechatronics Fan Group
FAN CORD 36"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 07190-36 | 07190 Series |
|---|---|---|
| 1st Connector | Fan Terminal Receptacle 90°, Right Angle | Fan Terminal Receptacle 90°, Right Angle |
| 2nd Connector | Open Wires | Open Wires, NEMA 1-15 Plug |
| Features | - | Red Tracer |
| Fits Terminal Size [x] | 4.1 | 4.1 |
| Fits Terminal Size [y] | 0.5 | 0.5 |
| Length | 91.44 cm | 1.83 - 91.44 m |
| Length | 36 in | 36 - 72 in |
| Length | - | 609.6 mm |
| Length | - | 24 in |
| Number of Conductors | 2 | 2 |
| Operating Temperature | 105 C | 105 C |
| Style | Female Receptacle to Cable | Female Receptacle to Male Plug, Female Receptacle to Cable |
| Wire Gauge | 18 AWG | 18 AWG |
07190 Series
FAN CORD W/ RED TRACER 48"
| Part | 2nd Connector | Style | Wire Gauge | Number of Conductors | 1st Connector | Operating Temperature | Fits Terminal Size [x] | Fits Terminal Size [y] | Length | Length | Features | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mechatronics Fan Group 07190-48R | Open Wires | Female Receptacle to Male Plug | 18 AWG | 2 | Fan Terminal Receptacle 90°, Right Angle | 105 C | 4.1 | 0.5 | |||||
Mechatronics Fan Group 07190-48 | Open Wires | Female Receptacle to Cable | 18 AWG | 2 | Fan Terminal Receptacle 90°, Right Angle | 105 C | 4.1 | 0.5 | |||||
Mechatronics Fan Group 07190-72P | NEMA 1-15 Plug | Female Receptacle to Male Plug | 18 AWG | 2 | Fan Terminal Receptacle 90°, Right Angle | 105 C | 4.1 | 0.5 | 72 in | 1.83 m | |||
Mechatronics Fan Group 07190-36R | Open Wires | Female Receptacle to Male Plug | 18 AWG | 2 | Fan Terminal Receptacle 90°, Right Angle | 105 C | 4.1 | 0.5 | 36 in | 91.44 cm | Red Tracer | ||
Mechatronics Fan Group 07190-36 | Open Wires | Female Receptacle to Cable | 18 AWG | 2 | Fan Terminal Receptacle 90°, Right Angle | 105 C | 4.1 | 0.5 | 36 in | 91.44 cm | |||
Mechatronics Fan Group 07190-24P | NEMA 1-15 Plug | Female Receptacle to Male Plug | 18 AWG | 2 | Fan Terminal Receptacle 90°, Right Angle | 105 C | 4.1 | 0.5 | 609.6 mm | 24 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.13 | |
| 1 | $ 2.01 | |||
| 10 | $ 1.94 | |||
| 10 | $ 2.06 | |||
| 25 | $ 2.00 | |||
| 50 | $ 1.88 | |||
| 100 | $ 1.69 | |||
| 100 | $ 1.59 | |||
| 250 | $ 1.66 | |||
| 500 | $ 1.56 | |||
| 1000 | $ 1.53 | |||
| 1000 | $ 1.45 | |||
Description
General part information
07190 Series

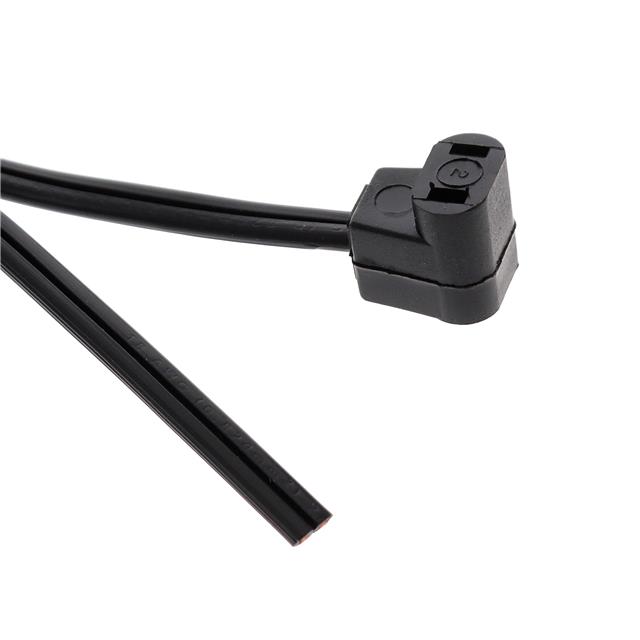

Fan Power Cord Fan Terminal Receptacle 90°, Right Angle 36.0" (914.4mm) Open Wires
