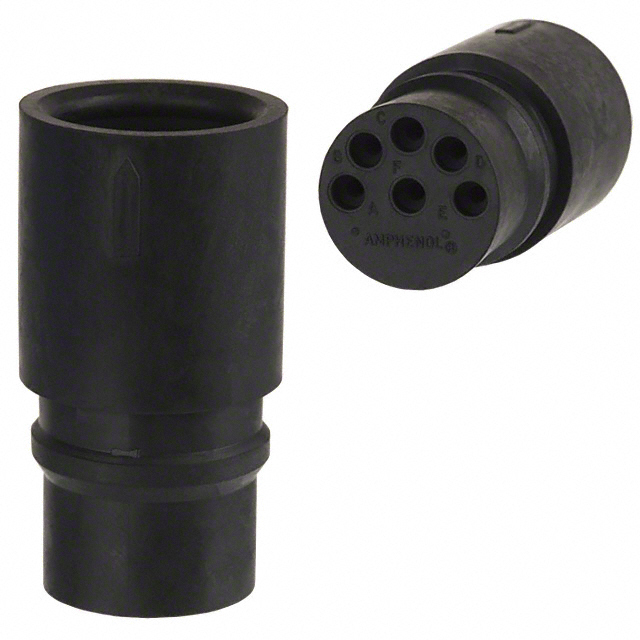

044 104 10006 02

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG MALE 6POS INLINE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG MALE 6POS INLINE

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN RCPT HSNG MALE 5POS INLINE

Part	Shell Material	Fastening Type	Note	Orientation	Contact Shape	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Shielding	Ingress Protection	Housing Color	Type	Contact Type	Insert Material	Number of Positions
Amphenol Tuchel Industrial 044 104 10005 02	Santoprene™ 101-73	Push-Pull	Contacts Not Included	Keyed	Circular	Free Hanging (In-Line)	125 °C	-40 °C	Receptacle Housing	Unshielded	IP65, IP67	Black	For Male Pins	Crimp	Santoprene™ 101-73
Amphenol Tuchel Industrial 044 104 99899
Amphenol Tuchel Industrial 044 104 10303	Santoprene™ 101-73	Push-Pull	Contacts Not Included	Keyed	Circular	Free Hanging (In-Line)	105 ░C	-40 °C	Receptacle Housing	Unshielded	IP65, IP67	Black	For Male Pins	Crimp	Santoprene™ 101-73
Amphenol Tuchel Industrial 044 104 10006 02	Santoprene™ 101-73	Push-Pull	Contacts Not Included	Keyed	Circular	Free Hanging (In-Line)	125 °C	-40 °C	Receptacle Housing	Unshielded	IP65, IP67	Black	For Male Pins	Crimp	Santoprene™ 101-73	6
Amphenol Tuchel Industrial 044 104 10001 02	Santoprene™ 101-73	Push-Pull	Contacts Not Included	Keyed	Circular	Free Hanging (In-Line)	125 °C	-40 °C	Receptacle Housing	Unshielded	IP65, IP67	Black	For Male Pins	Crimp	Santoprene™ 101-73	1
Amphenol Tuchel Industrial 044 104 10304	Santoprene™ 101-73	Push-Pull	Contacts Not Included	Keyed	Circular	Free Hanging (In-Line)	105 ░C	-40 °C	Receptacle Housing	Unshielded	IP65, IP67	Black	For Male Pins	Crimp	Santoprene™ 101-73	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle Housing Free Hanging (In-Line)
