PAA.M1.0GL.AC20G
ActiveLEMO

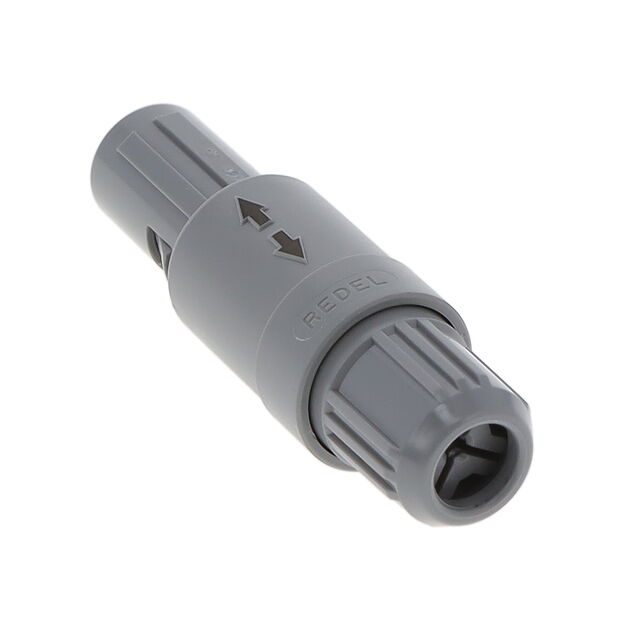

CONN PLUG MALE 10P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PAA.M1.0GL.AC20G
ActiveLEMO
CONN PLUG MALE 10P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PAA.M1.0GL.AC20G | PAA.M1 Series |
|---|---|---|
| Applications | Medical, Industrial, Automotive, Testing Equipment & Measurement | Medical, Industrial, Automotive, Testing Equipment & Measurement |
| Backshell Material, Plating | Polysulfone (PSU) | Polysulfone (PSU), Polyetherimide (PEI) |
| Cable Opening | - | 0.157 in |
| Cable Opening | - | 0.205 in |
| Cable Opening | - | 4 mm |
| Cable Opening | - | 5.2 mm |
| Cable Opening | - | 2.7 mm |
| Cable Opening | - | 0.154 in |
| Cable Opening | - | 3.9 mm |
| Cable Opening | - | 0.106 in |
| Cable Opening [custom] | 2 mm | 2 mm |
| Cable Opening [custom] | 0.067 in, 0.079 in | 0.067 - 0.256 in |
| Cable Opening [custom] | 1.7 mm | 1.7 - 6.5 mm |
| Color | Gray | Black, Gray, Yellow, Blue, Green |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Current Rating (Amps) | 3 A | 2 - 3 A |
| Fastening Type | Detent Lock, Push-Pull | Detent Lock, Push-Pull |
| Features | Backshell | Backshell |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 10 | 10 - 14 |
| Operating Temperature [Max] | 150 °C | 150 - 170 °C |
| Operating Temperature [Min] | -50 °C | -50 °C |
| Orientation | A | A |
| Primary Material | Plastic | Plastic |
| Shell Material | Polysulfone (PSU) | Polysulfone (PSU), Polyetherimide (PEI) |
| Shell Size - Insert | M10 | M10, M14 |
| Shielding | Unshielded | Unshielded |
PAA.M1 Series
CONN PLUG MALE 10P GOLD SLDR CUP
| Part | Fastening Type | Backshell Material, Plating | Color | Orientation | Shell Material | Shielding | Ingress Protection | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Mounting Type | Shell Size - Insert | Applications | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Connector Type | Contact Finish - Mating | Number of Positions | Features | Insert Material | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO PAA.M1.0NL.AC52N | Detent Lock, Push-Pull | Polysulfone (PSU) | Black | A | Polysulfone (PSU) | Unshielded | IP50 | 0.157 in | 0.205 in | 4 mm | 5.2 mm | Free Hanging (In-Line) | M10 | Automotive, Industrial, Medical, Testing Equipment & Measurement | 3 A | 150 °C | -50 °C | Plastic | Male Pins, Plug | Gold | 10 | Backshell | Polyetheretherketone (PEEK) | |||||||
Detent Lock, Push-Pull | Polysulfone (PSU) | Gray | A | Polysulfone (PSU) | Unshielded | IP50 | Free Hanging (In-Line) | M14 | Automotive, Industrial, Medical, Testing Equipment & Measurement | 2 A | 150 °C | -50 °C | Plastic | Male Pins, Plug | Gold | 14 | Backshell | Polyetheretherketone (PEEK) | 0.209 in, 0.256 in | 5.3 mm, 6.5 mm | ||||||||||
LEMO PAA.M1.0GL.AC65J | Detent Lock, Push-Pull | Polysulfone (PSU) | Gray, Yellow | A | Polysulfone (PSU) | Unshielded | IP50 | Free Hanging (In-Line) | M10 | Automotive, Industrial, Medical, Testing Equipment & Measurement | 3 A | 150 °C | -50 °C | Plastic | Male Pins, Plug | Gold | 10 | Backshell | Polyetheretherketone (PEEK) | 0.209 in, 0.256 in | 5.3 mm, 6.5 mm | |||||||||
LEMO PAA.M1.0GL.AC65G | Detent Lock, Push-Pull | Polysulfone (PSU) | Gray | A | Polysulfone (PSU) | Unshielded | IP50 | Free Hanging (In-Line) | M10 | Automotive, Industrial, Medical, Testing Equipment & Measurement | 3 A | 150 °C | -50 °C | Plastic | Male Pins, Plug | Gold | 10 | Backshell | Polyetheretherketone (PEEK) | 0.209 in, 0.256 in | 5.3 mm, 6.5 mm | |||||||||
Detent Lock, Push-Pull | Polysulfone (PSU) | Gray | A | Polysulfone (PSU) | Unshielded | IP50 | Free Hanging (In-Line) | M14 | Automotive, Industrial, Medical, Testing Equipment & Measurement | 2 A | 150 °C | -50 °C | Plastic | Male Pins, Plug | Gold | 14 | Backshell | Polyetheretherketone (PEEK) | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | ||||||||
LEMO PAA.M1.0GL.AC52G | Detent Lock, Push-Pull | Polysulfone (PSU) | Gray | A | Polysulfone (PSU) | Unshielded | IP50 | 0.157 in | 0.205 in | 4 mm | 5.2 mm | Free Hanging (In-Line) | M10 | Automotive, Industrial, Medical, Testing Equipment & Measurement | 3 A | 150 °C | -50 °C | Plastic | Male Pins, Plug | Gold | 10 | Backshell | Polyetheretherketone (PEEK) | |||||||
LEMO PAA.M1.0GL.AC20G | Detent Lock, Push-Pull | Polysulfone (PSU) | Gray | A | Polysulfone (PSU) | Unshielded | IP50 | Free Hanging (In-Line) | M10 | Automotive, Industrial, Medical, Testing Equipment & Measurement | 3 A | 150 °C | -50 °C | Plastic | Male Pins, Plug | Gold | 10 | Backshell | Polyetheretherketone (PEEK) | 0.067 in, 0.079 in | 1.7 mm | 2 mm | ||||||||
Detent Lock, Push-Pull | Polyetherimide (PEI) | Gray | A | Polyetherimide (PEI) | Unshielded | IP50 | Free Hanging (In-Line) | M10 | Automotive, Industrial, Medical, Testing Equipment & Measurement | 3 A | 170 °C | -50 °C | Plastic | Male Pins, Plug | Gold | 10 | Backshell | Polyetheretherketone (PEEK) | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | ||||||||
LEMO PAA.M1.4GL.AC65G | Detent Lock, Push-Pull | Polysulfone (PSU) | Gray | A | Polysulfone (PSU) | Unshielded | IP50 | Free Hanging (In-Line) | M14 | Automotive, Industrial, Medical, Testing Equipment & Measurement | 2 A | 150 °C | -50 °C | Plastic | Male Pins, Plug | Gold | 14 | Backshell | Polyetheretherketone (PEEK) | 0.209 in, 0.256 in | 5.3 mm, 6.5 mm | |||||||||
LEMO PAA.M1.0NL.AC39N | Detent Lock, Push-Pull | Polysulfone (PSU) | Black | A | Polysulfone (PSU) | Unshielded | IP50 | Free Hanging (In-Line) | M10 | Automotive, Industrial, Medical, Testing Equipment & Measurement | 3 A | 150 °C | -50 °C | Plastic | Male Pins, Plug | Gold | 10 | Backshell | Polyetheretherketone (PEEK) | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.05 | |
| 10 | $ 21.06 | |||
| 25 | $ 20.15 | |||
| 50 | $ 19.50 | |||
| 100 | $ 18.85 | |||
| 250 | $ 17.81 | |||
| 500 | $ 17.29 | |||
Description
General part information
PAA.M1 Series
10 Position Circular Connector Plug, Male Pins Solder Cup
