SCNRF-6AAP-SAFS

Active

Suntsu Electronics, Inc

CONN SMA JACK STR 50 OHMS

Search across all available documentation for this part.

Active

Suntsu Electronics, Inc

CONN SMA JACK STR 50 OHMS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

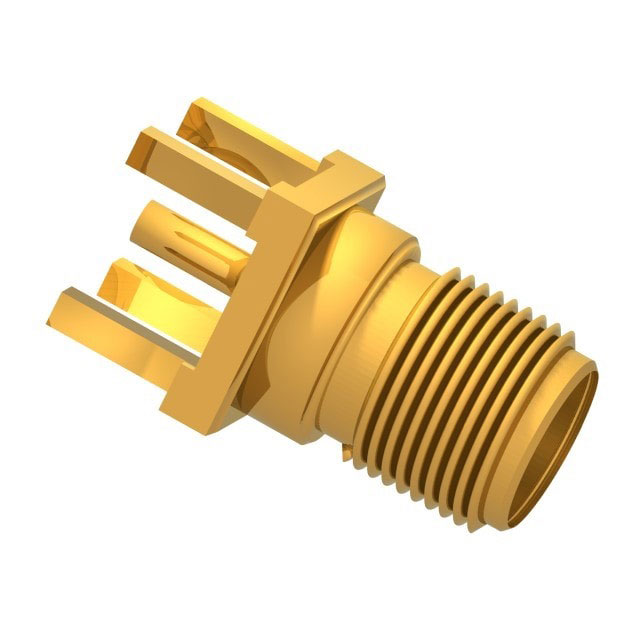

SMA Connector Jack, Female Socket 50 Ohms Through Hole Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	SCNRF-6AAP-SAFS	SCNRF-6AAP Series

Body Finish	Gold	Gold
Body Material	Brass	Brass
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	SMA	SMA, RP-SMA
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz	6000 MHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Mounting Type	Through Hole	Through Hole, Right Angle, Through Hole
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shield Termination	Solder	Solder
Voltage Rating	335 V	335 V

CONN SMA JACK R/A 50 OHMS

Part	Housing Color	Impedance	Frequency - Max [Max]	Body Material	Center Contact Plating	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Connector Style	Dielectric Material	Number of Ports	Shield Termination	Center Contact Material	Contact Termination	Connector Type	Voltage Rating
Suntsu Electronics, Inc SCNRF-6AAP-SAFR	Gold	50 Ohms	6000 MHz	Brass	Gold	Gold	85 °C	-55 °C	Through Hole, Right Angle	SMA	Polytetrafluoroethylene (PTFE)	1	Solder	Brass	Solder	Female Socket, Jack	335 V
Suntsu Electronics, Inc SCNRF-6AAP-RAFR	Gold	50 Ohms	6000 MHz	Brass	Gold	Gold	85 °C	-55 °C	Through Hole, Right Angle	RP-SMA	Polytetrafluoroethylene (PTFE)	1	Solder	Brass	Solder	Female Socket, Jack	335 V
Suntsu Electronics, Inc SCNRF-6AAP-SAFS	Gold	50 Ohms	6000 MHz	Brass	Gold	Gold	85 °C	-55 °C	Through Hole	SMA	Polytetrafluoroethylene (PTFE)	1	Solder	Brass	Solder	Female Socket, Jack	335 V
