Description
General part information
51-256.0268

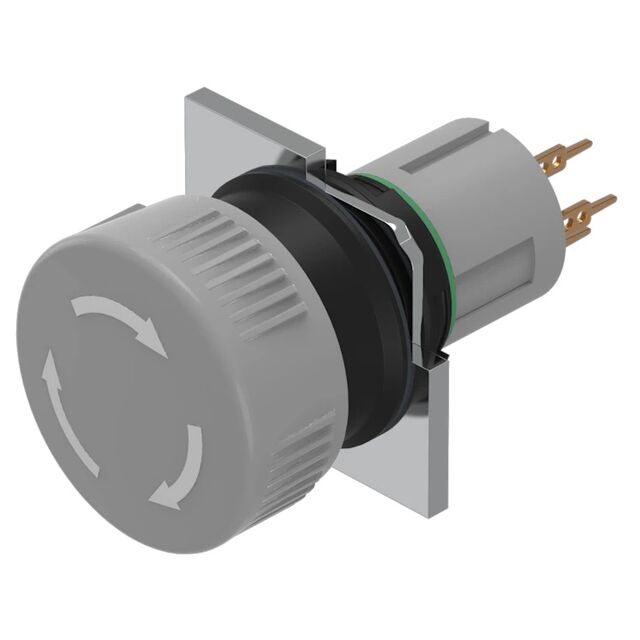

Pushbutton Switch SPST-NC Standard Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | 51-256.0268 |
|---|---|
| Actuator Type | Button, Round, Mushroom |
| Circuit | SPST-NC |
| Color - Actuator/Cap | Gray |
| Current Rating | 100 mA |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 16.2 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Off |
| Termination Style | Solder Lug, PC Pin |
| Type | Standard |
| Voltage Rating - AC | 42 V |
| Voltage Rating - DC | 42 V |
