AEK-POW-L5964V1
ActiveDIGITALLY CONTROLLED DC-DC CONVERTER WITH L5964 FOR AUTOMOTIVE APPLICATIONS
Deep-Dive with AI
Search across all available documentation for this part.
AEK-POW-L5964V1
ActiveDIGITALLY CONTROLLED DC-DC CONVERTER WITH L5964 FOR AUTOMOTIVE APPLICATIONS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AEK-POW-L5964V1 | AEK-POW-L5964V1 Series |
|---|---|---|
| - | - | |
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 3 A | 3 A |
| Current - Output | 3 A | 3 A |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Outputs and Type | 2 | 2 |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Regulator Topology | Buck | Buck |
| Supplied Contents | Board(s) | Board(s) |
| Utilized IC / Part | L5964 | L5964 |
| Voltage - Input [Max] | 14 V | 14 V |
| Voltage - Input [Min] | 6 V | 6 V |
| Voltage - Output [Max] | 11 V | 11 V |
| Voltage - Output [Min] | 3.3 V | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
AEK-POW-L5964V1 Series
Digitally controlled DC-DC converter with L5964 for automotive applications
| Part | Board Type | Utilized IC / Part | Supplied Contents | Voltage - Output [Max] | Voltage - Output [Min] | Current - Output | Current - Output | Outputs and Type | Outputs and Type | Voltage - Input [Min] | Voltage - Input [Max] | Regulator Topology | Main Purpose |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics AEK-POW-L5964V1 | |||||||||||||
STMicroelectronics AEK-POW-L5964V1 | Fully Populated | L5964 | Board(s) | 11 V | 3.3 V | 3 A | 3 A | 2 | Non-Isolated | 6 V | 14 V | Buck | DC/DC, Step Down |
STMicroelectronics AEK-POW-L5964V1 |
Description
General part information
AEK-POW-L5964V1 Series

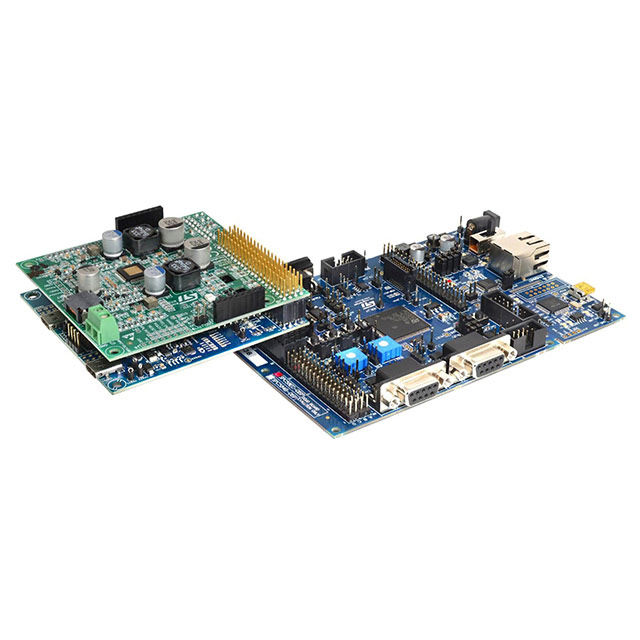

The AEK-POW-L5964V1 expansion board is designed for power car or truck body applications requiring different voltages, such as USB-PD or infotainment. It has two independent converters that can deliver a fixed or variable output voltage via MCU control. The output current can be up to 3 A per channel.
The board includes monitoring circuitries for input and output voltages, and LEDs to indicate operating status. EMI is minimized through appropriate filtering techniques.
The converters are based on the L5964 step-down switching regulators (in buck topology) with overcurrent and overtemperature protection. The L5964 integrates the control, power switches and monitoring circuitries of both converters alongside features such as watchdog, wake-up and reset.
