102792-6
ActiveTE Connectivity AMP Connectors

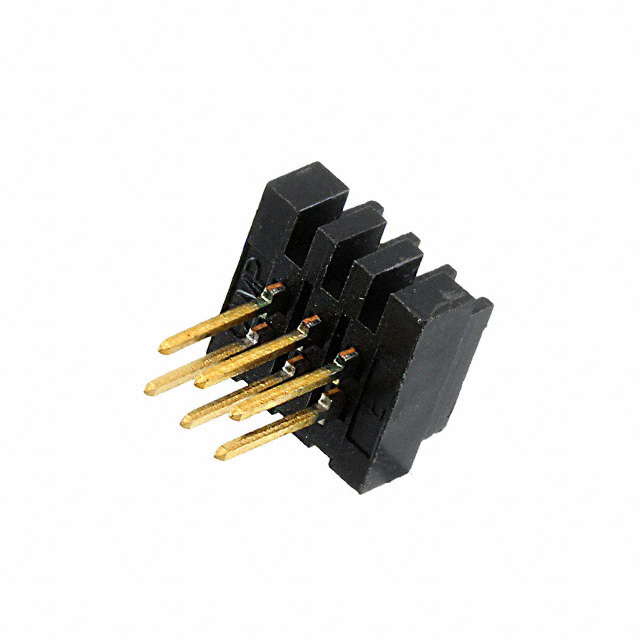

CONN HEADER R/A 6POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
102792-6
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 6POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 102792-6 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Mating [x] | 0.318 " |
| Contact Length - Mating [x] | 8.08 mm |
| Contact Length - Post [x] | 0.135 in |
| Contact Length - Post [x] | 3.43 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.434 " |
| Insulation Height | 11.02 mm |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Unshrouded |
| Style | Board to Cable/Wire |
| Termination | Solder |
