0024K0214-9

Active

TE Connectivity Raychem Cable Protection

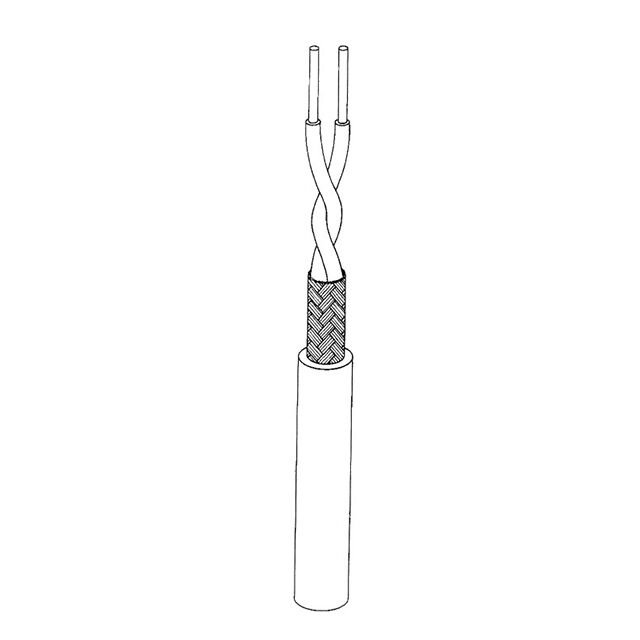

CABLE TWINAXIAL 24AWG FEET

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CABLE TWINAXIAL 24AWG FEET

Technical Specifications

Parameters and characteristics for this part

Specification	0024K0214-9

Cable Type	Twinaxial
Conductor Material	Copper Alloy, Silver Coated
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	19 Strands
Dielectric Diameter [diameter]	0.051 "
Dielectric Diameter [diameter]	1.3 mm
Impedance	100 Ohms
Jacket (Insulation) Diameter [diameter]	3.63 mm
Jacket (Insulation) Diameter [diameter]	0.143 in
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF)
Length	Enter Number of Feet in Order Quantity
Shield Coverage	90 %
Shield Material	Copper, Silver Coated
Shield Type	Braid
VoP, Velocity of Propagation	76
Wire Gauge	24 AWG

CABLE TWINAXIAL 24AWG FEET

Part	VoP, Velocity of Propagation	Cable Type	Wire Gauge	Shield Material	Shield Coverage	Shield Type	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Impedance	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material
TE Connectivity Raychem Cable Protection 0024K0214-9	76	Twinaxial	24 AWG	Copper, Silver Coated	90 %	Braid	Enter Number of Feet in Order Quantity	3.63 mm	0.143 in	0.051 "	1.3 mm	100 Ohms	Copper Alloy, Silver Coated	36 AWG	19 Strands	Polyvinylidene Fluoride (PVDF)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Twinaxial Cable 24 AWG Enter Number of Feet in Order Quantity 100 Ohms
