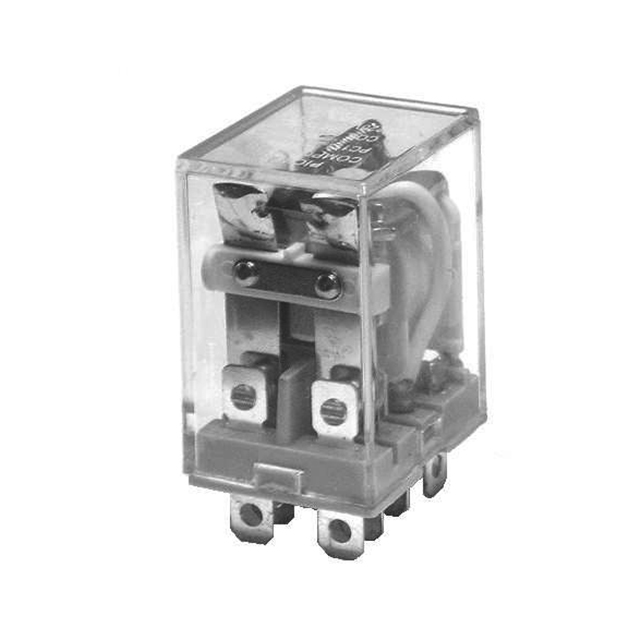

PC113-2C-C1-120A-X

Active

Picker Components

RELAY GEN PURPOSE DPDT 12A 120V

Search across all available documentation for this part.

Active

Picker Components

RELAY GEN PURPOSE DPDT 12A 120V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY GEN PURPOSE DPDT 12A 24V

Part	Termination Style	Relay Type	Coil Resistance	Contact Form	Load - Max Switching	Release Time	Coil Current	Coil Voltage	Coil Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Must Operate Voltage	Must Release Voltage	Operate Time	Contact Rating (Current)	Contact Material	Switching Voltage	Coil Insulation
Picker Components PC113-2C-C1-24A-X	Solder Lug	General Purpose	184 Ohms	DPDT (2 Form C)	336 W, 3000 VA	25 ms	130.4 mA	24 VAC	Non Latching	-40 °C	70 °C	Chassis Mount	19.2 VDC	7.2 VDC	25 ms	12 A	Silver Cadmium Oxide (AgCdO)	28 VDC, 250 VAC	Class F
Picker Components PC113-2C-C1-120A-X	Solder Lug	General Purpose	4.55 kOhms	DPDT (2 Form C)	336 W, 3000 VA	25 ms	26.4 mA	120 VAC	Non Latching	-40 °C	70 °C	Chassis Mount	96 VAC	36 VAC	25 ms	12 A	Silver Cadmium Oxide (AgCdO)	28 VDC, 250 VAC	Class F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPDT (2 Form C) 120VAC Coil Chassis Mount
