FA-118T 32.0000MA20Z-AJ8

Active

EPSON

FA-118T 32.0000MA20Z-AJ8: XTL MH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

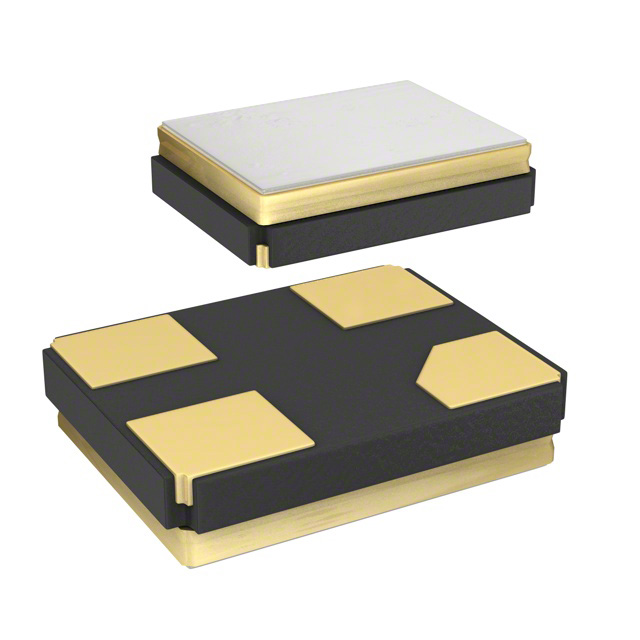

FA-118T 32.0000MA20Z-AJ8

Active

EPSON

FA-118T 32.0000MA20Z-AJ8: XTL MH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	6000	$ 0.35

Description

General part information

FA-118T Series

32 MHz ±20ppm Crystal 8pF 100 Ohms 4-SMD, No Lead

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FA-118T 32.0000MA20Z-AJ8	FA-118T Series

ESR (Equivalent Series Resistance)	100 Ohms	60 - 200 Ohm
Frequency	32 MHz	24 - 48 MHz
Frequency Stability	20 ppm	10 - 30 ppm
Frequency Stability	-	-12 ppm
Frequency Stability	-	8 ppm
Frequency Tolerance	20 ppm	10 - 30 ppm
Height - Seated (Max) [Max]	0.014 in	0.014 in
Height - Seated (Max) [Max]	0.35 mm	0.35 mm
Load Capacitance	8 pF	6 - 20 pF
Mounting Type	Surface Mount	Surface Mount
Operating Mode	Fundamental	Fundamental
Operating Temperature	-	-40 - -30 ░C
Operating Temperature	-	85 °C
Package / Case	4-SMD, No Lead	4-SMD, No Lead
Size / Dimension [x]	1.6 mm	1.6 mm
Size / Dimension [x]	0.063 in	0.063 in
Size / Dimension [y]	0.047 in	0.047 in
Size / Dimension [y]	1.2 mm	1.2 mm
Supplier Device Package	-	4-SMD (1.6x1.2)
Type	MHz Crystal	MHz Crystal

FA-118T Series

FA-118T 25.00M-70YYYYUB0RE0: XTL

Part	Operating Mode	Type	Package / Case	Frequency Tolerance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Frequency Stability	Load Capacitance	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package
EPSON FA-118T 25.00M-70YYYYUB0RE0	Fundamental	MHz Crystal	4-SMD, No Lead	30 ppm	0.047 in	1.2 mm	1.6 mm	0.063 in	30 ppm	7 pF	200 Ohm	0.014 in	0.35 mm	Surface Mount	25 MHz
EPSON FA-118T 38.40M-A0AAFFN60RE3	Fundamental	MHz Crystal	4-SMD, No Lead	10 ppm	0.047 in	1.2 mm	1.6 mm	0.063 in	15 ppm	10 pF	80 Ohm	0.014 in	0.35 mm	Surface Mount	38.4 MHz
EPSON FA-118T 24.00M-70AANNGB0REB	Fundamental	MHz Crystal	4-SMD, No Lead	10 ppm	0.047 in	1.2 mm	1.6 mm	0.063 in	20 ppm	7 pF	200 Ohm	0.014 in	0.35 mm	Surface Mount	24 MHz
EPSON FA-118T 26.00M-C0AAAANA5RE0	Fundamental	MHz Crystal	4-SMD, No Lead	10 ppm	0.047 in	1.2 mm	1.6 mm	0.063 in	10 ppm	12 pF	150 Ohms, 200 Ohm	0.014 in	0.35 mm	Surface Mount	26 MHz	-30 ░C	85 °C	4-SMD (1.6x1.2)
EPSON FA-118T 24.00M-N0YYYYUB0REB	Fundamental	MHz Crystal	4-SMD, No Lead	30 ppm	0.047 in	1.2 mm	1.6 mm	0.063 in	30 ppm	20 pF	200 Ohm	0.014 in	0.35 mm	Surface Mount	24 MHz
EPSON FA-118T 25.00M-70YYYYUB0REB	Fundamental	MHz Crystal	4-SMD, No Lead	30 ppm	0.047 in	1.2 mm	1.6 mm	0.063 in	30 ppm	7 pF	200 Ohm	0.014 in	0.35 mm	Surface Mount	25 MHz
EPSON FA-118T 32.00M-A0AACCUA0REB	Fundamental	MHz Crystal	4-SMD, No Lead	10 ppm	0.047 in	1.2 mm	1.6 mm	0.063 in	12 ppm	10 pF	100 Ohms	0.014 in	0.35 mm	Surface Mount	32 MHz
EPSON FA-118T 24.00M-N0YYYYUB0RE0	Fundamental	MHz Crystal	4-SMD, No Lead	30 ppm	0.047 in	1.2 mm	1.6 mm	0.063 in	30 ppm	20 pF	200 Ohm	0.014 in	0.35 mm	Surface Mount	24 MHz
EPSON FA-118T 48.00M-60AANNG80REB	Fundamental	MHz Crystal	4-SMD, No Lead	10 ppm	0.047 in	1.2 mm	1.6 mm	0.063 in	20 ppm	6 pF	80 Ohm	0.014 in	0.35 mm	Surface Mount	48 MHz
EPSON FA-118T 32.00M-60AAAAU50REB	Fundamental	MHz Crystal	4-SMD, No Lead	10 ppm	0.047 in	1.2 mm	1.6 mm	0.063 in	10 ppm	6 pF	100 Ohms	0.014 in	0.35 mm	Surface Mount	32 MHz
