431000-05-0

Active

Curtis Industries

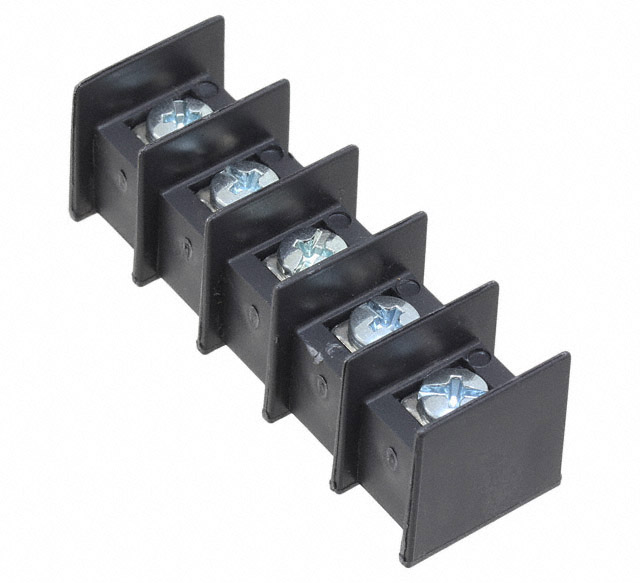

CONN BARRIER STRIP 5CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTerminal Blocks Catalog Datasheet

431000-05-0

Active

Curtis Industries

CONN BARRIER STRIP 5CIRC 0.438"

Deep-Dive with AI

DocumentsTerminal Blocks Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	431000-05-0	431000 Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	Closed	Closed
Current Rating (Amps)	20 A	20 A
Material - Insulation	Polypropylene (PP)	Polypropylene (PP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	5	5 - 26
Number of Rows	1	1
Number of Wire Entries	5	5 - 26
Number of Wire Entries	-	22
Operating Temperature	105 C	105 C
Pitch [x]	11.12 mm	11.12 mm
Pitch [x]	0.438 in	0.438 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Finish	Zinc	Zinc
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws
Voltage Rating	600 V	600 V
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

431000 Series

CONN BARRIER STRP 20CIRC 0.438"

Part	Terminal Screw Finish	Operating Temperature	Terminal Block Type	Number of Wire Entries	Top Termination	Mounting Type	Number of Circuits	Wire Gauge [Min]	Wire Gauge [Max]	Material Flammability Rating	Voltage Rating	Terminal Screw Material	Material - Insulation	Bottom Termination	Number of Rows	Pitch [x]	Pitch [x]	Current Rating (Amps)	Barrier Type	Number of Wire Entries [custom]
Curtis Industries 431000-20-0	Zinc	105 C	Barrier Block	20	Screws	Chassis, Panel	20	12 AWG	22 AWG	UL94 V-0	600 V	Steel	Polypropylene (PP)	Closed	1	11.12 mm	0.438 in	20 A	2 Wall (Dual)
Curtis Industries 431000-19-0	Zinc	105 C	Barrier Block	19	Screws	Chassis, Panel	19	12 AWG	22 AWG	UL94 V-0	600 V	Steel	Polypropylene (PP)	Closed	1	11.12 mm	0.438 in	20 A	2 Wall (Dual)
Curtis Industries 431000-14-0	Zinc	105 C	Barrier Block	14	Screws	Chassis, Panel	14	12 AWG	22 AWG	UL94 V-0	600 V	Steel	Polypropylene (PP)	Closed	1	11.12 mm	0.438 in	20 A	2 Wall (Dual)
Curtis Industries 431000-26-0	Zinc	105 C	Barrier Block	26	Screws	Chassis, Panel	26	12 AWG	22 AWG	UL94 V-0	600 V	Steel	Polypropylene (PP)	Closed	1	11.12 mm	0.438 in	20 A	2 Wall (Dual)
Curtis Industries 431000-13-0	Zinc	105 C	Barrier Block	13	Screws	Chassis, Panel	13	12 AWG	22 AWG	UL94 V-0	600 V	Steel	Polypropylene (PP)	Closed	1	11.12 mm	0.438 in	20 A	2 Wall (Dual)
Curtis Industries 431000-25-0	Zinc	105 C	Barrier Block	25	Screws	Chassis, Panel	25	12 AWG	22 AWG	UL94 V-0	600 V	Steel	Polypropylene (PP)	Closed	1	11.12 mm	0.438 in	20 A	2 Wall (Dual)
Curtis Industries 431000-10-0	Zinc	105 C	Barrier Block	10	Screws	Chassis, Panel	10	12 AWG	22 AWG	UL94 V-0	600 V	Steel	Polypropylene (PP)	Closed	1	11.12 mm	0.438 in	20 A	2 Wall (Dual)
Curtis Industries 431000-05-0	Zinc	105 C	Barrier Block	5	Screws	Chassis, Panel	5	12 AWG	22 AWG	UL94 V-0	600 V	Steel	Polypropylene (PP)	Closed	1	11.12 mm	0.438 in	20 A	2 Wall (Dual)
Curtis Industries 431000-22-0	Zinc	105 C	Barrier Block		Screws	Chassis, Panel	22	12 AWG	22 AWG	UL94 V-0	600 V	Steel	Polypropylene (PP)	Closed	1	11.12 mm	0.438 in	20 A	2 Wall (Dual)	22

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 2.55

Description

General part information

431000 Series

5 Circuit 0.438" (11.12mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Terminal Blocks Catalog

Datasheet
