WM8776SEFT/V
ObsoleteCirrus Logic Inc.
IC CODEC 24BIT 5CH MUX 48TQFP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WM8776SEFT/V
ObsoleteCirrus Logic Inc.
IC CODEC 24BIT 5CH MUX 48TQFP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WM8776SEFT/V |
|---|---|
| Data Interface | SPI |
| Dynamic Range, ADCs / DACs (db) Typ [custom] | 102 db |
| Dynamic Range, ADCs / DACs (db) Typ [custom] | 108 db |
| Mounting Type | Surface Mount |
| Number of ADCs / DACs [custom] | 1 |
| Number of ADCs / DACs [custom] | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |

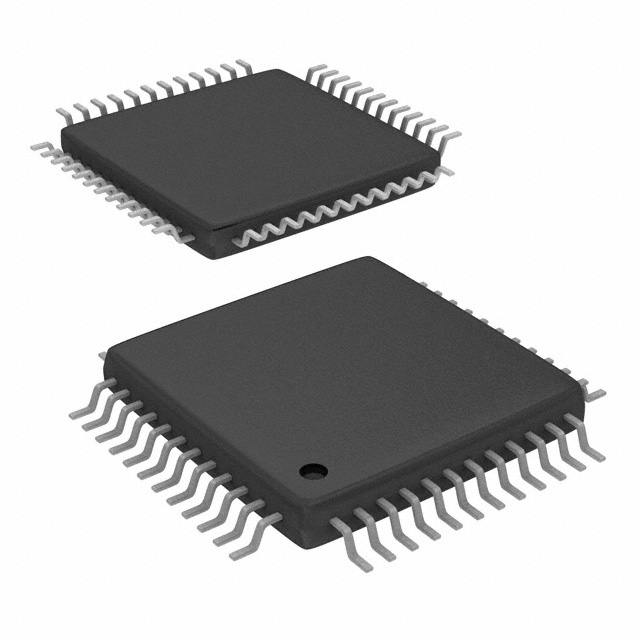

| Package / Case | 48-TQFP |
| Resolution (Bits) | 24 b |
| S/N Ratio, ADCs / DACs (db) Typ [custom] | 102 db |
| S/N Ratio, ADCs / DACs (db) Typ [custom] | 108 db |
| Sigma Delta | True |
| Supplier Device Package | 48-TQFP (7x7) |
| Type | Stereo Audio, IP Multiplexer |
| Voltage - Supply, Analog [Max] | 5.5 V |
| Voltage - Supply, Analog [Min] | 2.7 V |
| Voltage - Supply, Digital [Max] | 3.6 V |
| Voltage - Supply, Digital [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.71 | |
| 10 | $ 8.77 | |||
| 25 | $ 8.36 | |||
| 80 | $ 7.26 | |||
Description
General part information
WM8776SEFT/V
Stereo Audio, IP Multiplexer Interface 24 b SPI 48-TQFP (7x7)
Documents
Technical documentation and resources
