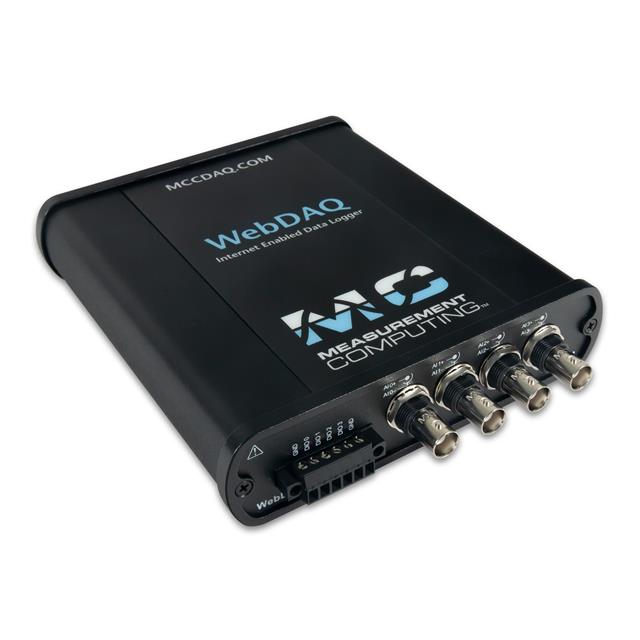

6069-410-006
ObsoleteDigilent, Inc.
DATALOGGER MULTIFUNC I/O USB 2.0
6069-410-006
ObsoleteDigilent, Inc.
DATALOGGER MULTIFUNC I/O USB 2.0
Description
General part information
6069-410-006
Multifunction I/O Datalogger RJ45, USB 2.0 (2) BNC, Screw Terminal
Technical Specifications
Parameters and characteristics for this part
| Specification | 6069-410-006 |
|---|---|
| Bidirectional Channels | 4 |
| Bus Connection | RJ45, USB 2.0 |
| Front Connection | Screw Terminal, BNC |
| Function | Multifunction I/O |
| Input Resolution | 24 Bits |
| Input Types | Analog, Digital |
| Input Voltage (Max) | 5 V |
| Input Voltage (Min) | -5 V |
| Number of Analog Inputs | 4 |
| Number of Digital Inputs | 4 |
| Number of Outputs | 4 |
| Output Resolution | 4 Bits |
| Output Type | Digital |
| Output Voltage Range (Max) | 3.6 V |
| Output Voltage Range (Min) | 1 V |
| Sampling Rate (Per Second) | 51 kHz |
| Type | Datalogger |
