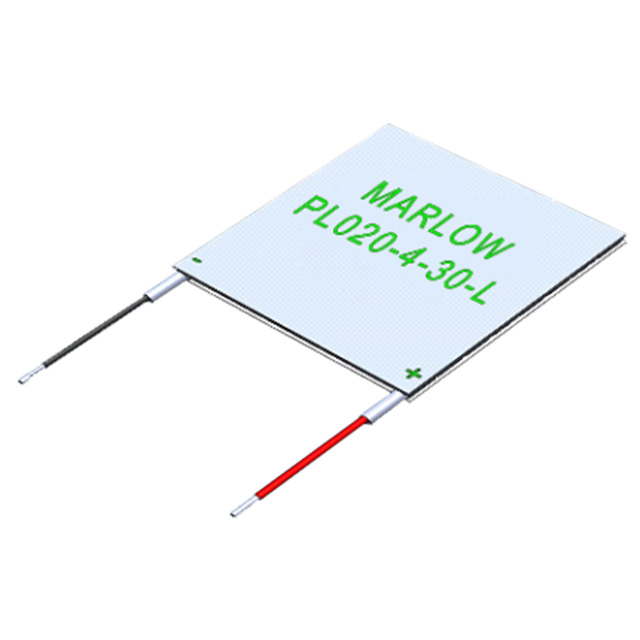

PL020-4-30-01LS
ActiveMarlow Industries, Inc.
TEM 29.69X29.69X4.7MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PL020-4-30-01LS
ActiveMarlow Industries, Inc.
TEM 29.69X29.69X4.7MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PL020-4-30-01LS |
|---|---|
| Current - Max [Max] | 3.9 A |
| Delta Tmax @ Th | 65 °C |
| Features | Lapped, Sealed, Lead Wires |
| Height [z] | 4.6 mm |
| Number of Stages | 1 |
| Qmax @ Th | 20.7 W |
| Resistance | 1.8 Ohms |
| Size / Dimension [x] | 29.69 mm |
| Size / Dimension [y] | 29.69 mm |
| Voltage - Max [Max] | 8.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 41.24 | |
Description
General part information
PL020 Series
Peltier Module 20.7W @ 27°C 3.9 A 85°C
