ASP-127797-01

Active

Samtec Inc.

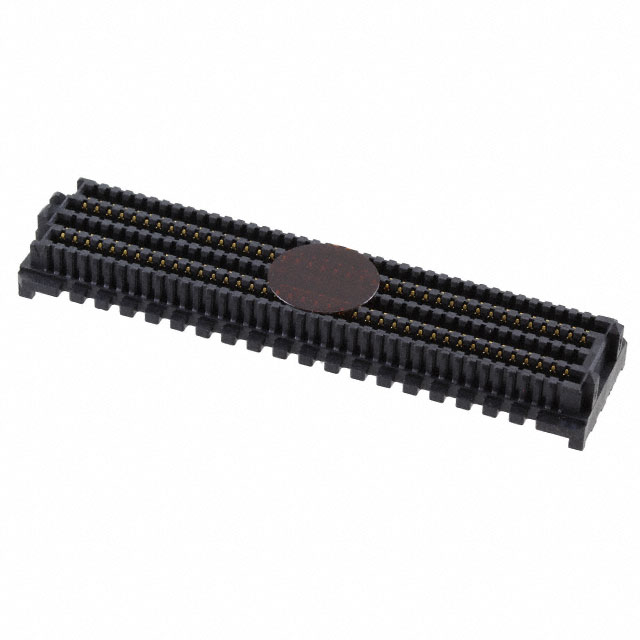

CONN, VITA 57 FMC, HEADER, 160POS, 4ROW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

ASP-127797-01

Active

Samtec Inc.

CONN, VITA 57 FMC, HEADER, 160POS, 4ROW

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ASP-127797-01

Connector Type	Male Pins, Array
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Board Guide
Height Above Board	0.28 in
Height Above Board	7.1 mm
Mounting Type	Surface Mount
Number of Positions	160
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

127797-01 Series

CONN, VITA 57 FMC, HEADER, 160POS, 4ROW

Part	Contact Finish	Connector Type	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Mounting Type	Features
Samtec Inc. ASP-127797-01	Gold	Array, Male Pins	0.05 in	1.27 mm	0.28 in	7.1 mm	0.76 Ám	30 Áin	160	Surface Mount	Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 20.97
		10	$ 19.62
		25	$ 18.05
		50	$ 14.91
		100	$ 13.13
	Tape & Reel (TR)	200	$ 13.13
		400	$ 11.99
Newark	Each	1	$ 22.81
		10	$ 21.27
		25	$ 19.82
		50	$ 17.80
		100	$ 17.32
		250	$ 16.26

Description

General part information

127797-01 Series

The ASP-127797-01 is a 160-pole 4-row 1.27mm Male FMC Connector with gold-plated copper alloy contacts. The VITA 57 Field Programmable Mezzanine Card (FMC) standard provides a mechanical standard for I/O mezzanine modules. This standard introduces a methodology that shall allow the front panel IO of IEEE 1101 form factor cards to be configured, via mezzanine boards.
