1966224

Active

Phoenix Contact

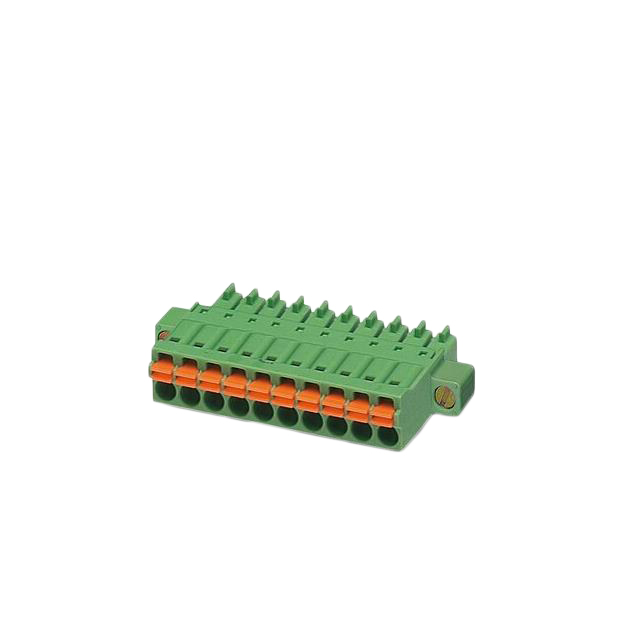

PLUGGABLE TERMINAL BLOCKS 15 POS 3.5MM PITCH PLUG 24-16AWG SPRING

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 15 POS 3.5MM PITCH PLUG 24-16AWG SPRING

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1966224	FMC Series

Color	Green	Black, Green
Contact Mating Finish	Tin	Gold, Tin
Current - IEC	8 A	6 - 8 A
Current - UL	8 A	6 - 8 A
Features	Mating Flange	Latch Lock, Mating Flange
Housing Material	Polyamide (PA), Nylon	Liquid Crystal Polymer (LCP), Polyamide (PA), Nylon
Insulation Height	-	5.4 mm
Insulation Height	-	0.213 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	15	6 - 19
Pitch [x]	3.5 mm	2.54 - 3.81 mm
Pitch [x]	0.138 in	0.1 - 0.15 in
Positions Per Level	15	6 - 19
Termination Style	Screwless - Push-In Spring	Push-In Spring, Screwless - Leg Spring, Screwless - Push-In Spring
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - IEC	320 V	160 - 320 V
Voltage - UL	150 V	150 V
Wire Gauge or Range - AWG [Max]	24 AWG	24 - 26 AWG
Wire Gauge or Range - AWG [Min]	16 AWG	16 - 20 AWG
Wire Gauge or Range - mm˛	-	0.14 mm˛
Wire Gauge or Range - mm˛	-	0.5 mm˛
Wire Gauge or Range - mm² [Max]	1.5 mm²	1.5 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²	0.2 mm²
Wire Strip Length	10 mm	7 - 10 mm

Pluggable Terminal Blocks 7 Pos 3.5mm pitch Plug 24-16AWG Spring

Part	Number of Levels	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Voltage - IEC	Housing Material	Current - UL	Pitch [x]	Pitch [x]	Positions Per Level	Voltage - UL	Mounting Type	Contact Mating Finish	Number of Positions	Termination Style	Material Flammability Rating	Color	Insulation Height	Insulation Height [z]	Wire Strip Length	Type	Current - IEC	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Features	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]
Phoenix Contact 1706239	1	26 AWG	20 AWG	160 V	Liquid Crystal Polymer (LCP)	6 A	2.54 mm	0.1 in	6	150 V	Free Hanging (In-Line)	Gold	6	Push-In Spring, Screwless - Leg Spring	UL94 V-0	Black	5.4 mm	0.213 in	7 mm	Plug, Female Sockets	6 A	0.14 mm˛	0.5 mm˛
Phoenix Contact 1952199	1	24 AWG	16 AWG	320 V	Polyamide (PA), Nylon	8 A	3.5 mm	0.138 in	19	150 V	Free Hanging (In-Line)	Tin	19	Screwless - Push-In Spring	UL94 V-0	Green			10 mm	Plug, Female Sockets	8 A			Latch Lock	0.2 mm²	1.5 mm²
Phoenix Contact 1966224	1	24 AWG	16 AWG	320 V	Polyamide (PA), Nylon	8 A	3.5 mm	0.138 in	15	150 V	Free Hanging (In-Line)	Tin	15	Screwless - Push-In Spring	UL94 V-0	Green			10 mm	Plug, Female Sockets	8 A			Mating Flange	0.2 mm²	1.5 mm²
Phoenix Contact 1798375	1	24 AWG	16 AWG	160 V		8 A	3.81 mm	0.15 in	10	150 V	Free Hanging (In-Line)	Gold	10	Screwless - Push-In Spring		Black			10 mm	Plug, Female Sockets	8 A			Mating Flange	0.2 mm²	1.5 mm²
