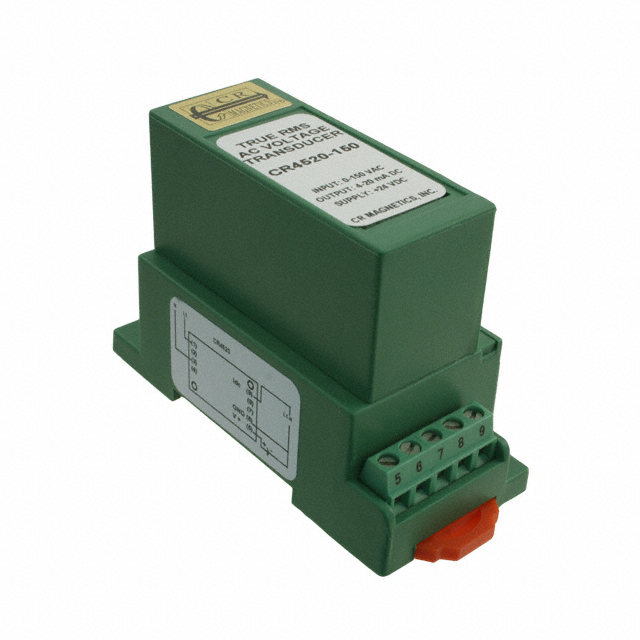

Specification	CR4520-150

Accuracy	0.5 % RH
Approval Agency	cURus, CE
Input Voltage (Max)	150 V
Input Voltage (Min)	0 mV
Isolation	2500 V
Mounting Type	DIN Rail
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	0 °C
Output Current (Max)	20 mA
Output Current (Min)	4 mA
Response Time	250 ms
Termination Style	Screw Terminal
Type	True RMS AC Voltage Transducer
Voltage - Supply	24 VDC
