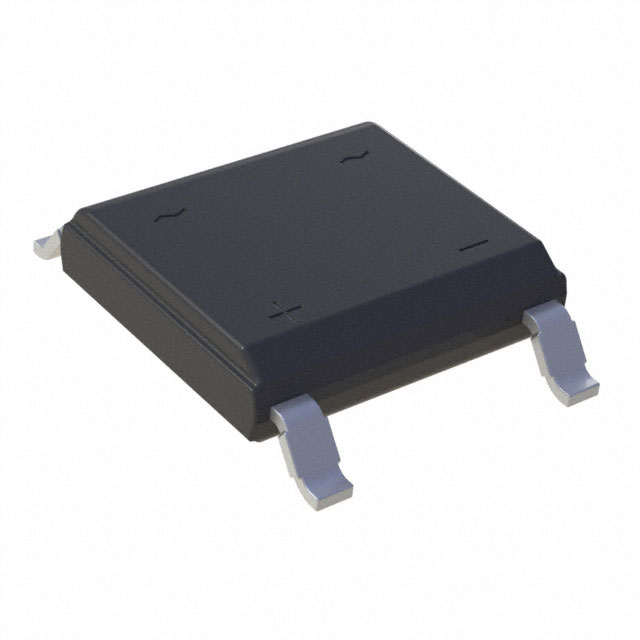

RABS15MH

Active

Taiwan Semiconductor Corporation

BRIDGE RECT 1P 1KV 1.5A ABS-L

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

BRIDGE RECT 1P 1KV 1.5A ABS-L

Technical Specifications

Parameters and characteristics for this part

Specification	RABS15MH

Current - Average Rectified (Io)	1.5 A
Current - Reverse Leakage @ Vr	1 µA
Diode Type	Single Phase
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-SMD, Gull Wing
Qualification	AEC-Q101
Supplier Device Package	ABS-L
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.3 V
Voltage - Peak Reverse (Max) [Max]	1000 V

Part	Package / Case	Technology	Voltage - Peak Reverse (Max) [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Forward (Vf) (Max) @ If	Diode Type	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Supplier Device Package	Grade	Qualification
Taiwan Semiconductor Corporation RABS15M	4-SMD Gull Wing	Standard	1000 V	Surface Mount	-55 °C	150 °C	1.3 V	Single Phase	1 µA	1.5 A	ABS-L
Taiwan Semiconductor Corporation RABS15M REG	4-SMD Gull Wing	Standard	1000 V	Surface Mount	-55 °C	150 °C	1 V	Single Phase	1 µA	1.5 A	ABS-L
Taiwan Semiconductor Corporation RABS15MH	4-SMD Gull Wing	Standard	1000 V	Surface Mount	-55 °C	150 °C	1.3 V	Single Phase	1 µA	1.5 A	ABS-L	Automotive	AEC-Q101
Taiwan Semiconductor Corporation RABS15MHREG	4-SMD Gull Wing	Standard	1000 V	Surface Mount	-55 °C	150 °C	1.3 V	Single Phase	1 µA	1.5 A	ABS-L	Automotive	AEC-Q101

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 1 kV Surface Mount ABS-L
