PAT-04-CC-B-20-S-9

Active

FiberSource, Inc

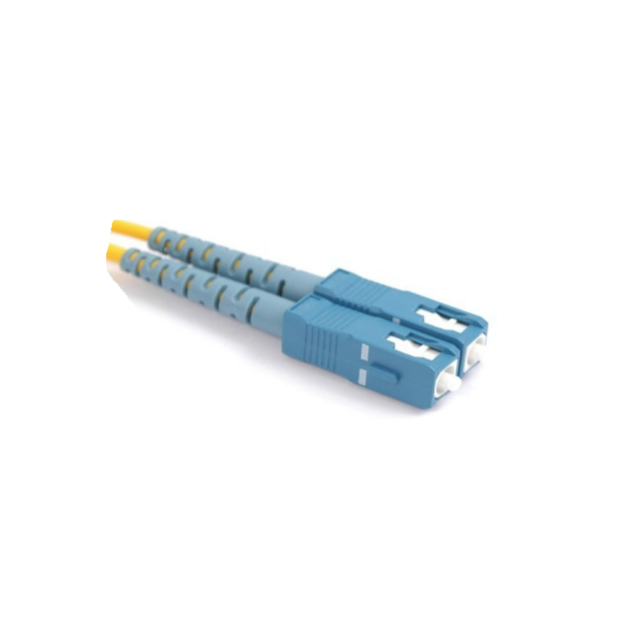

SCU-SCU SM 2MM YELLOW SIMPLEX 4M

Search across all available documentation for this part.

Active

FiberSource, Inc

SCU-SCU SM 2MM YELLOW SIMPLEX 4M

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Fiber Optic SC/UPC To SC/UPC 13.1' (4.0m)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	PAT-04-CC-B-20-S-9	PAT-04 Series

1st Connector	SC/UPC	SC Duplex, LC Duplex, SC/UPC
2nd Connector	SC/UPC	SC Duplex, SC/UPC, LC Duplex, LC/PPC
Cable Diameter [diameter]	2 mm	2 mm
Cable Diameter [diameter]	0.08 in	0.08 in
Color - Cable	Yellow	Yellow
Color - Connectors	-	Blue
Fiber Type	-	50/125
Insertion Loss	0.2 dB	0.2 - 0.3 dB
Length - Overall [x]	13.1 '	13.1 '
Length - Overall [x]	4 m	4 m
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Return Loss	65 dB, 55 dB	55 - 65 dB
Type	Singlemode, Simplex	Singlemode, Duplex, OM3, Multimode, Simplex

FIBER OPTIC CBL SC-SC DUPLEX 4M

Part	Cable Diameter [diameter]	Cable Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	2nd Connector	Type	1st Connector	Return Loss	Insertion Loss	Color - Cable	Color - Connectors	Length - Overall [x]	Length - Overall [x]	Fiber Type
FiberSource, Inc PAT-04-DC-B-20-D-9	2 mm	0.08 in	85 °C	-40 °C	SC Duplex	Duplex, Singlemode	SC Duplex	65 dB	0.3 dB	Yellow	Blue	13.1 '	4 m
FiberSource, Inc PAT-04-HD-B-20-D-9	2 mm	0.08 in	85 °C	-40 °C	SC Duplex	Duplex, Singlemode	LC Duplex	65 dB	0.3 dB	Yellow	Blue	13.1 '	4 m
FiberSource, Inc PAT-04-CC-B-20-D-9	2 mm	0.08 in	85 °C	-40 °C	SC Duplex	Duplex, Singlemode	SC Duplex	55 dB	0.3 dB	Yellow	Blue	13.1 '	4 m
FiberSource, Inc PAT-04-NL-F-20-D-A	2 mm	0.08 in	85 °C	-40 °C	SC Duplex	Duplex, Multimode, OM3	LC Duplex				Blue	13.1 '	4 m	50/125
FiberSource, Inc PAT-04-CC-B-20-S-9	2 mm	0.08 in	85 °C	-40 °C	SC/UPC	Simplex, Singlemode	SC/UPC	55 dB, 65 dB	0.2 dB	Yellow		13.1 '	4 m
FiberSource, Inc PAT-04-HH-B-20-D-9	2 mm	0.08 in	85 °C	-40 °C	LC Duplex	Duplex, Singlemode	LC Duplex	55 dB	0.3 dB	Yellow	Blue	13.1 '	4 m
FiberSource, Inc PAT-04-NN-F-20-D-A	2 mm	0.08 in	85 °C	-40 °C	LC/PPC	Duplex, Multimode, OM3					Blue	13.1 '	4 m	50/125
FiberSource, Inc PAT-04-DD-B-20-D-9	2 mm	0.08 in	85 °C	-40 °C	SC Duplex	Duplex, Singlemode	SC Duplex	65 dB	0.3 dB	Yellow	Blue	13.1 '	4 m
FiberSource, Inc PAT-04-HC-B-20-D-9	2 mm	0.08 in	85 °C	-40 °C	SC Duplex	Duplex, Singlemode	LC Duplex	55 dB	0.3 dB	Yellow	Blue	13.1 '	4 m
