GPT1604RC-9642-1
ActiveRemington Industries
TRAILER CBL 4COND 16AWG MULT 1'
GPT1604RC-9642-1
ActiveRemington Industries
TRAILER CBL 4COND 16AWG MULT 1'
Description
General part information
GPT1604RC-9642-1

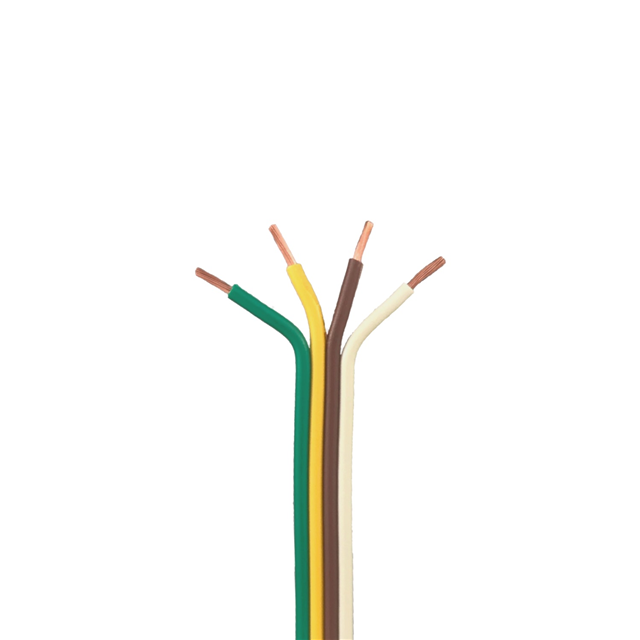

4 Conductor Trailer Cable Cable Brown, Green, White, Yellow 16 AWG 1.00' (0.30m)
Technical Specifications
Parameters and characteristics for this part
| Specification | GPT1604RC-9642-1 |
|---|---|
| Cable Type | Trailer Cable |
| Conductor Material | Copper, Bare |
| Conductor Strand Count | 19 |
| Conductor Strand Diameter | 0.0117 in |
| Features | Oil Resistant, Abrasion Resistant, Bonded |
| Jacket (Insulation) Diameter | 0.102 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.023 in |
| Jacket Color | Green, Brown, Yellow, White |
| Length | 12 in |
| Number of Conductors | 4 |
| Operating Temperature | 105 °C |
| Ratings | SAE, J1128 |
| Usage | Automotive Wiring |
| Voltage | 60 V |
| Wire Gauge | 16 AWG |
