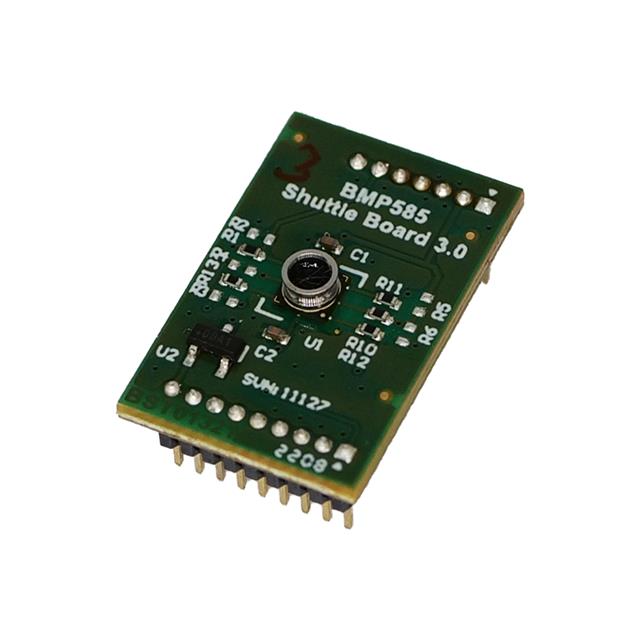

SHUTTLE BOARD 3.0 BMP585

Active

Bosch Sensortec

Search across all available documentation for this part.

Active

Bosch Sensortec

SHUTTLE BOARD 3.0 BMP585

Technical Specifications

Parameters and characteristics commom to parts in this series

ABSOLUTE PRESSURE SENSOR

Part	Features	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Pressure [Min] [x]	Operating Pressure [Max] [x]	Operating Pressure [Max] [x]	Operating Pressure [Min] [x]	Supplier Device Package	Accuracy	Accuracy	Port Style	Mounting Type	Output Type	Package / Case	Applications	Type	Function	Utilized IC / Part	Interconnect System	Contents
Bosch Sensortec BMP585	Standby Mode	3.6 V	1.71 V	0.3 bar	18.13 PSI	125 kPa	4.35 PSI	3.25x3.25, 9-LGA	0.007 PSI	0.05 kPa	No Port	Surface Mount	I2C, I3C, SPI	9-LGA	Board Mount
Bosch Sensortec SHUTTLE BOARD 3.0 BMP585																Sensor	Pressure	BMP585	Shuttle Board 3.0 Socket	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 30.13

General part information

BMP585 Pressure Sensor Platform Evaluation Expansion Board

Technical documentation and resources
