ECG.2B.319.CLV
ActiveLEMO

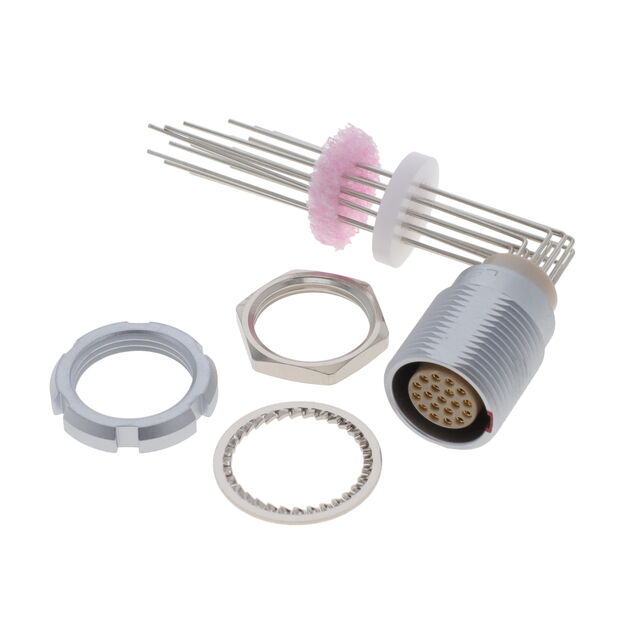

CONN RCPT FMALE 19POS GOLD SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ECG.2B.319.CLV
ActiveLEMO
CONN RCPT FMALE 19POS GOLD SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ECG.2B.319.CLV | ECG.2B Series |
|---|---|---|
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets, Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 5 A | 2 - 17 A |
| Fastening Type | Push-Pull | Push-Pull |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Front and Rear Side Nut | Front and Rear Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 19 | 2 - 19 |
| Number of Positions | - | 16 |
| Number of Positions | - | 1 |
| Number of Positions | - | 6 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 319 | 15 - 806 |
| Shell Size - Insert | - | P13 |
| Shielding | Shielded | Shielded |
| Termination | Solder | Solder, Crimp |
ECG.2B Series
CONN RCPT FMALE 8POS GOLD SOLDER
| Part | Shell Size - Insert | Shell Finish | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Insert Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Primary Material | Shielding | Material Flammability Rating | Shell Material | Mounting Feature | Ingress Protection | Contact Material | Mounting Type | Current Rating (Amps) | Color | Orientation | Number of Positions | Fastening Type | Termination | Connector Type | Number of Positions | Number of Positions [custom] | Number of Positions [custom] | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO ECG.2B.308.CLV | 308 | Chrome | Gold | -55 °C | 250 °C | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | Metal | Shielded | UL94 V-0 | Brass | Front and Rear Side Nut | IP50 | Bronze | Panel Mount, Right Angle, Through Hole | 6 A | Silver | G | 8 | Push-Pull | Solder | Receptacle, Female Sockets | ||||
LEMO ECG.2B.310.CLN | 310 | Chrome | Gold | -55 °C | 250 °C | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | Metal | Shielded | UL94 V-0 | Brass | Front and Rear Side Nut | IP50 | Bronze | Panel Mount, Through Hole | 8 A | Silver | G | 10 | Push-Pull | Solder | Receptacle, Female Sockets | ||||
LEMO ECG.2B.437.CJA | Chrome | Gold | -55 °C | 250 °C | Polyetheretherketone (PEEK) | Metal | Shielded | UL94 V-0 | Brass | Front and Rear Side Nut | IP50 | 2 A | Silver | G | 7 | Push-Pull | Male Pins, Receptacle | ||||||||||
LEMO ECG.2B.307.CYM | 307 | Chrome | Gold | -55 °C | 250 °C | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | Metal | Shielded | UL94 V-0 | Brass | Front and Rear Side Nut | IP50 | Bronze | 11 A | Silver | G | 7 | Push-Pull | Crimp | Receptacle, Female Sockets | |||||
LEMO ECG.2B.319.CYM | 319 | Chrome | Gold | -55 °C | 250 °C | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | Metal | Shielded | UL94 V-0 | Brass | Front and Rear Side Nut | IP50 | Bronze | 5 A | Silver | G | 19 | Push-Pull | Crimp | Receptacle, Female Sockets | |||||
LEMO ECG.2B.310.CLV | 310 | Chrome | Gold | -55 °C | 250 °C | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | Metal | Shielded | UL94 V-0 | Brass | Front and Rear Side Nut | IP50 | Bronze | Panel Mount, Right Angle, Through Hole | 6 A | Silver | G | 10 | Push-Pull | Solder | Receptacle, Female Sockets | ||||
LEMO ECG.2B.316.CLV | 316 | Chrome | Gold | -55 °C | 250 °C | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | Metal | Shielded | UL94 V-0 | Brass | Front and Rear Side Nut | IP50 | Bronze | Panel Mount, Right Angle, Through Hole | 6 A | Silver | G | Push-Pull | Solder | Receptacle, Female Sockets | 16 | ||||
LEMO ECG.2B.318.CYM | 318 | Chrome | Gold | -55 °C | 250 °C | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | Metal | Shielded | UL94 V-0 | Brass | Front and Rear Side Nut | IP50 | Bronze | 5.5 Amps | Silver | G | 18 | Push-Pull | Crimp | Receptacle, Female Sockets | |||||
LEMO ECG.2B.303.CLV | 303 | Chrome | Gold | -55 °C | 250 °C | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | Metal | Shielded | UL94 V-0 | Brass | Front and Rear Side Nut | IP50 | Bronze | Panel Mount, Right Angle, Through Hole | 12 A | Silver | G | Push-Pull | Solder | Receptacle, Female Sockets | |||||
LEMO ECG.2B.514.CYM | 514 | Chrome | Gold | -55 °C | 250 °C | Polyetheretherketone (PEEK) | Metal | Shielded | UL94 V-0 | Brass | Front and Rear Side Nut | IP50 | Bronze | Silver | G | Push-Pull | Crimp | Receptacle, Female Sockets |
