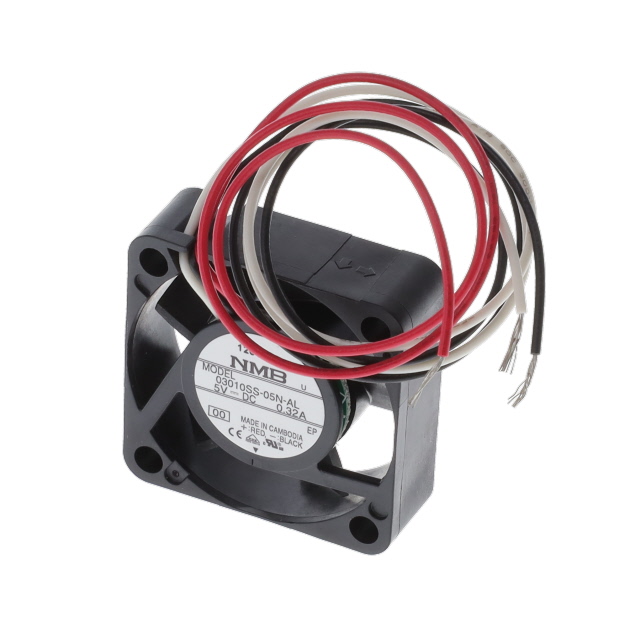

03010SS-05N-AL-00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 5 V, SQUARE, 30 MM, 10 MM, SLEEVE BEARING, 4.2 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Manufacturer Product Page EN

03010SS-05N-AL-00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 5 V, SQUARE, 30 MM, 10 MM, SLEEVE BEARING, 4.2 CFM

Deep-Dive with AI

DocumentsDatasheet Manufacturer Product Page EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	03010SS-05N-AL-00	03010SS Series

Air Flow	0.118 m³/min	0.098 - 3.9 mł/min
Air Flow	4.2 CFM	3.5 - 4.2 CFM
Air Flow	-	0.109 m³/min
Bearing Type	Sleeve	Sleeve
Current Rating (Amps)	0.21 A	0.21 - 120 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Locked Rotor Sensor, Auto Restart	Locked Rotor Sensor, Auto Restart, Speed Sensor (Tach)
Lifetime @ Temp.	30000 Hrs	30000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	28 dB	23.5 - 34 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	1.05 W	0.8 - 840 mW
RPM	10500 RPM	8500 - 10500 RPM
Size / Dimension [x]	30 mm	30 mm
Size / Dimension [z]	30 mm	30 mm
Static Pressure	59.8 Pa	47.3 - 59.8 Pa
Static Pressure	0.24 in H2O	0.19 - 0.24 in H2O
Termination	3 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	5 V	5 - 12 VDC
Voltage Range [Max]	5.5 V	5.5 - 13.2 VDC
Voltage Range [Min]	4.5 V	4.5 - 7 V
Weight	-	8.62 g
Weight	-	0.019 lb
Width [y]	10 mm	10 mm

03010SS Series

DC AXIAL FAN, 12 V, SQUARE, 30 MM, 10 MM, SLEEVE BEARING, 3.5 CFM

Part	Material - Blade	Current Rating (Amps)	Width [y]	Features	Bearing Type	Size / Dimension [x]	Size / Dimension [z]	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Termination	RPM	Power (Watts)	Noise	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Voltage - Rated	Fan Type	Material - Frame	Static Pressure	Static Pressure	Air Flow
NMB TECHNOLOGIES 03010SS-12L-AL-00	Plastic	60 mA	10 mm	Auto Restart, Locked Rotor Sensor	Sleeve	30 mm	30 mm	0.098 mł/min	3.5 CFM	70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	8500 RPM	720 mW	26 dB	13.2 VDC	7 V	30000 Hrs	12 VDC	Tubeaxial	Plastic
NMB TECHNOLOGIES 03010SS-12M-AT-00	Plastic	70 mA	10 mm	Auto Restart, Speed Sensor (Tach)	Sleeve	30 mm	30 mm	3.9 CFM		70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	9500 RPM	840 mW	30 dB(A)	13.2 VDC	7 V	30000 Hrs	12 VDC	Tubeaxial	Plastic	47.3 Pa	0.19 in H2O	0.109 m³/min
NMB TECHNOLOGIES 03010SS-05M-AT-00	Plastic		10 mm	Auto Restart, Speed Sensor (Tach)	Sleeve	30 mm	30 mm	3.9 CFM		70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	9500 RPM	0.8 W	26 dB	5.5 V	4.5 V	30000 Hrs	5 V	Tubeaxial	Plastic	47.3 Pa	0.19 in H2O	0.109 m³/min
NMB TECHNOLOGIES 03010SS-12M-AA-00	Plastic	70 mA	10 mm	Auto Restart	Sleeve	30 mm	30 mm	3.9 CFM		70 °C	70 °C	-10 °C	-10 °C	2 Wire Leads	9500 RPM	840 mW	30 dB(A)	13.2 VDC	7 V	30000 Hrs	12 VDC	Tubeaxial	Plastic	47.3 Pa	0.19 in H2O	0.109 m³/min
NMB TECHNOLOGIES 03010SS-05L-AT-00	Plastic	120 mA	10 mm	Auto Restart, Speed Sensor (Tach)	Sleeve	30 mm	30 mm	0.098 mł/min	3.5 CFM	70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	8500 RPM	600 mW	23.5 dB(A)	5.5 V	4.5 V	30000 Hrs	5 V	Tubeaxial	Plastic
NMB TECHNOLOGIES 03010SS-05N-AL-00	Plastic	0.21 A	10 mm	Auto Restart, Locked Rotor Sensor	Sleeve	30 mm	30 mm	0.118 m³/min	4.2 CFM	70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	10500 RPM	1.05 W	28 dB	5.5 V	4.5 V	30000 Hrs	5 V	Tubeaxial	Plastic	59.8 Pa	0.24 in H2O
NMB TECHNOLOGIES 03010SS-05M-AL-00	Plastic		10 mm	Auto Restart, Locked Rotor Sensor	Sleeve	30 mm	30 mm	3.9 CFM		70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	9500 RPM	0.8 W	26 dB	5.5 V	4.5 V	30000 Hrs	5 V	Tubeaxial	Plastic	47.3 Pa	0.19 in H2O	0.109 m³/min
NMB TECHNOLOGIES 03010SS-05M-AA-00	Plastic		10 mm	Auto Restart	Sleeve	30 mm	30 mm	3.9 CFM		70 °C	70 °C	-10 °C	-10 °C	2 Wire Leads	9500 RPM	0.8 W	26 dB	5.5 V	4.5 V	30000 Hrs	5 V	Tubeaxial	Plastic	47.3 Pa	0.19 in H2O	0.109 m³/min
NMB TECHNOLOGIES 03010SS-12M-AL-00	Plastic	70 mA	10 mm	Auto Restart, Locked Rotor Sensor	Sleeve	30 mm	30 mm	3.9 CFM		70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	9500 RPM	840 mW	30 dB(A)	13.2 VDC	7 V	30000 Hrs	12 VDC	Tubeaxial	Plastic	47.3 Pa	0.19 in H2O	0.109 m³/min
NMB TECHNOLOGIES 03010SS-12N-AA-00	Plastic		10 mm	Auto Restart	Sleeve	30 mm	30 mm	0.118 m³/min	4.2 CFM	70 °C	70 °C	-10 °C	-10 °C	2 Wire Leads	10500 RPM		34 dB(A)			30000 Hrs	12 VDC	Tubeaxial	Plastic	59.8 Pa	0.24 in H2O

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 6.60
		10	$ 5.88
		25	$ 5.62
		50	$ 5.43
		100	$ 5.24
		250	$ 5.01
		500	$ 4.84
Newark	Each	1	$ 8.51
		1080	$ 7.72
		1980	$ 7.58
		2520	$ 7.43
		5040	$ 7.33
		10080	$ 7.07

Description

General part information

03010SS Series

Fan Tubeaxial 5VDC Square - 30mm L x 30mm H Sleeve 4.2 CFM (0.118m³/min) 3 Wire Leads
