General part information

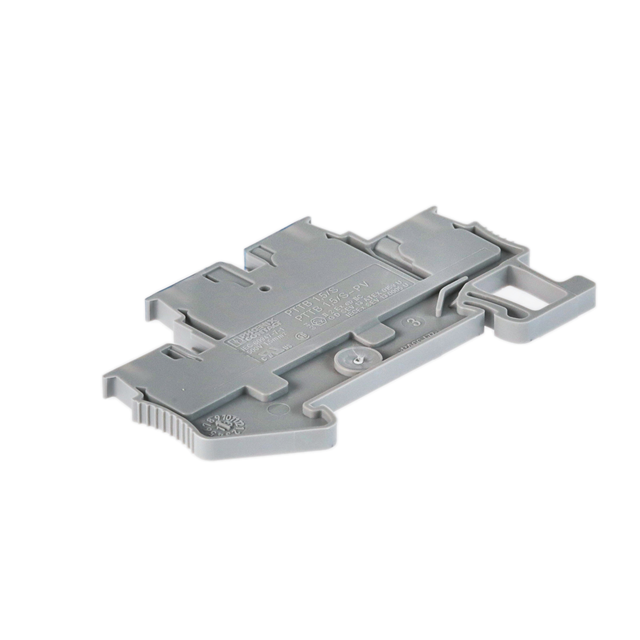

DIN Rail Terminal Blocks PTTB 1,5/S-L/N
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 3208544 |
|---|---|
| Color | Gray |
| Current - IEC | 16 A |
| Current - UL | 5 A |
| Material - Insulation | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 2 |
| Number of Positions | 4 |
| Stripping Length | 8 mm |
| Terminal - Width [y] | 3.5 mm |
| Termination Style | Push In, Spring |
| Type | Feed Through |
| Voltage - IEC | 500 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG [Max] | 26 AWG |
| Wire Gauge or Range - AWG [Min] | 14 AWG |
| Wire Gauge or Range - mm² [Max] | 1.5 mm² |
| Wire Gauge or Range - mm² [Min] | 0.14 mm² |
DIN Rail Terminal Blocks PTTB 1,5/S-L/N
| Part | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Number of Positions | Color | Current - UL | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Termination Style | Voltage - IEC | Stripping Length | Current - IEC | Material - Insulation | Material Flammability Rating | Number of Levels | Type | Terminal - Width [y] | Voltage - UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 3208544 | 26 AWG | 14 AWG | 4 | Gray | 5 A | 0.14 mm² | 1.5 mm² | Push In, Spring | 500 V | 8 mm | 16 A | Nylon, Polyamide (PA) | UL94 V-0 | 2 | Feed Through | 3.5 mm | 600 V |
