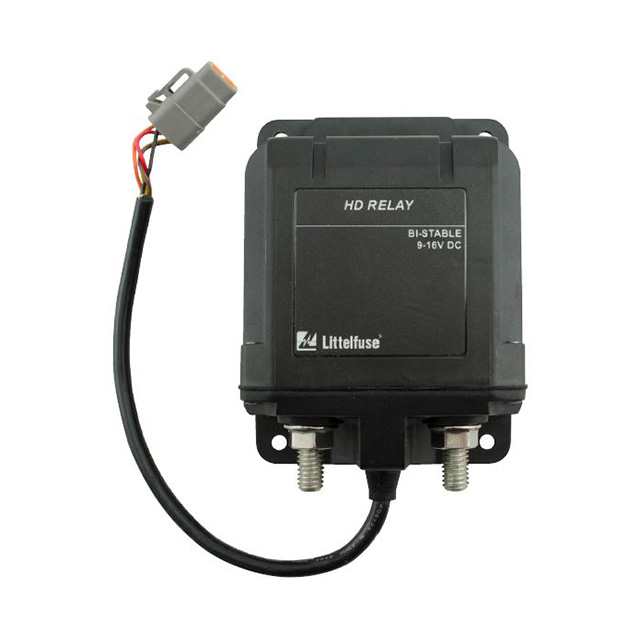

880086

Active

Cole Hersee

RELAY GEN PURPOSE SPDT 300A 12V

Search across all available documentation for this part.

Active

Cole Hersee

RELAY GEN PURPOSE SPDT 300A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	880086

Coil Type	Latching, Single Coil
Coil Voltage	12 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Alloy
Contact Rating (Current)	300 A
Features	Test Button, Lighted Indicator
Load - Max Switching [Max]	4800 W
Mounting Type	Chassis Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-50 °C
Relay Type	General Purpose
Seal Rating	Sealed - Fully
Switching Voltage	16 VDC
Termination Style	Screw Terminal

RELAY GEN PURPOSE SPDT 300A 12V

Part	Coil Voltage	Contact Form	Features	Switching Voltage	Load - Max Switching [Max]	Mounting Type	Coil Type	Relay Type	Contact Rating (Current)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Seal Rating	Termination Style
Cole Hersee 880086	12 VDC	SPDT (1 Form C)	Lighted Indicator, Test Button	16 VDC	4800 W	Chassis Mount	Latching, Single Coil	General Purpose	300 A	-50 °C	105 ░C	Silver Alloy	Sealed - Fully	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 12VDC Coil Chassis Mount
