G8032L12B-RSR

Active

Mechatronics Fan Group

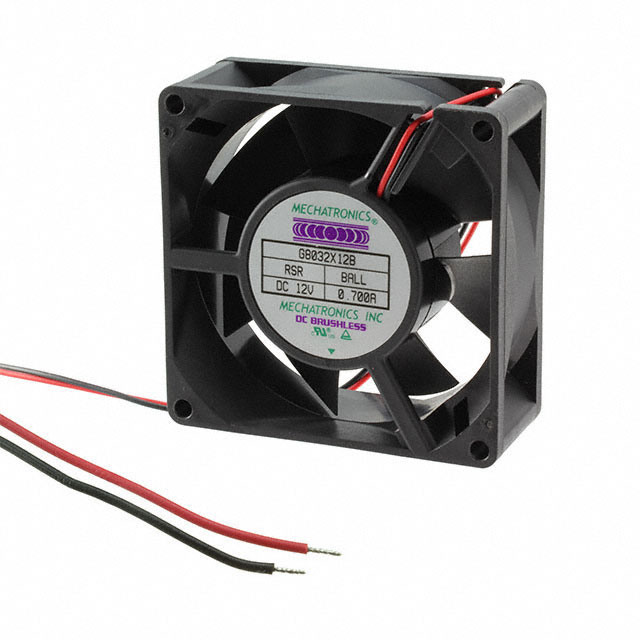

FAN AXIAL 80X32MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC/DC Fans & Blowers Catalog Datasheet +2

G8032L12B-RSR

Active

Mechatronics Fan Group

FAN AXIAL 80X32MM 12VDC WIRE

Deep-Dive with AI

DocumentsAC/DC Fans & Blowers Catalog Datasheet +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 11.26

Description

General part information

G8032 Series

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 34.0 CFM (0.952m³/min) 2 Wire Leads

Documents

Technical documentation and resources

Specification	G8032L12B-RSR	G8032 Series

Air Flow	0.952 m³/min	0.812 - 1.46 m³/min
Air Flow	34 CFM	29 - 52 CFM
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	0.2 A	0.2 - 450 A
Fan Type	Tubeaxial	Tubeaxial
Features	Thermal Overload Protector (TOP)	Speed Sensor (Tach), Thermal Overload Protector (TOP), Alarm Sensor
Ingress Protection	-	IP57 - Dust Protected, Waterproof
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Noise	34 dB(A)	30 - 46 dB(A)
RPM	3000 RPM	2500 - 4500 RPM
Size / Dimension [x]	80 mm	80 mm
Size / Dimension [y]	80 mm	80 mm
Static Pressure	49.8 Pa	49.8 - 109.6 Pa
Static Pressure	0.2 in H2O	0.2 - 0.44 in H2O
Termination	2 Wire Leads	3 Wire Leads, 2 Wire Leads, 4 Wire Leads
Voltage - Rated	12 VDC	5 - 24 VDC
Weight	129.73 g	129.73 g
Weight	0.286 lb	0.286 lb
Width [y]	32 mm	32 mm

Part

Termination

Bearing Type

RPM

Weight

Fan Type

Material - Blade

Features

Approval Agency

Static Pressure

Voltage - Rated

Size / Dimension [y]

Size / Dimension [x]

Current Rating (Amps)

Noise

Width [y]

Air Flow

Ingress Protection

Mechatronics Fan Group

G8032L12B1-RSR

3 Wire Leads

Ball

3000 RPM

129.73 g

0.286 lb

Tubeaxial

Polybutylene Terephthalate (PBT)

Speed Sensor (Tach), Thermal Overload Protector (TOP)

CE, cUL, TUV, UL

49.8 Pa

0.2 in H2O

12 VDC

80 mm

0.2 A

34 dB(A)

32 mm

0.952 m³/min

34 CFM

Mechatronics Fan Group

G8032S24B-RSR

2 Wire Leads

Ball

2500 RPM

129.73 g

0.286 lb

Tubeaxial

Polybutylene Terephthalate (PBT)

Thermal Overload Protector (TOP)

CE, cUL, TUV, UL

24 VDC

80 mm

100 mA

30 dB(A)

32 mm

0.812 mł/min

29 CFM

Mechatronics Fan Group

G8032L05B-RSR

2 Wire Leads

Ball

3000 RPM

129.73 g

0.286 lb

Tubeaxial

Polybutylene Terephthalate (PBT)

Thermal Overload Protector (TOP)

CE, cUL, TUV, UL

49.8 Pa

0.2 in H2O

5 V

80 mm

0.25 A

34 dB(A)

32 mm

0.952 m³/min

34 CFM

Mechatronics Fan Group

G8032E24B1-RSR-WS

4 Wire Leads

Ball

4500 RPM

129.73 g

0.286 lb

Tubeaxial

Polybutylene Terephthalate (PBT)

Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)

CE, cUL, TUV, UL

109.6 Pa

0.44 in H2O

24 VDC

80 mm

0.33 A

46 dB(A)

32 mm

1.46 mł/min

52 CFM

Mechatronics Fan Group

G8032M24B-RSR-EM

2 Wire Leads

Ball

3500 RPM

129.73 g

0.286 lb

Tubeaxial

Polybutylene Terephthalate (PBT)

Thermal Overload Protector (TOP)

CE, cUL, TUV, UL

72.2 Pa

0.29 in H2O

24 VDC

80 mm

0.2 A

38 dB(A)

32 mm

1.15 mł/min

41 CFM

IP57 - Dust Protected, Waterproof

Mechatronics Fan Group

G8032M24B1-RSR

3 Wire Leads

Ball

3500 RPM

129.73 g

0.286 lb

Tubeaxial

Polybutylene Terephthalate (PBT)

Speed Sensor (Tach), Thermal Overload Protector (TOP)

CE, cUL, TUV, UL

72.2 Pa

0.29 in H2O

24 VDC

80 mm

0.2 A

38 dB(A)

32 mm

1.15 mł/min

41 CFM

Mechatronics Fan Group

G8032H12B1-RSR-EM

3 Wire Leads

Ball

4000 RPM

129.73 g

0.286 lb

Tubeaxial

Polybutylene Terephthalate (PBT)

Speed Sensor (Tach), Thermal Overload Protector (TOP)

CE, cUL, TUV, UL

92.2 Pa

0.37 in H2O

12 VDC

80 mm

450 mA

42 dB

32 mm

1.34 m³/min

48 CFM

IP57 - Dust Protected, Waterproof

Mechatronics Fan Group

G8032X12B-RSR

2 Wire Leads

Ball

129.73 g

0.286 lb

Tubeaxial

Polybutylene Terephthalate (PBT)

Thermal Overload Protector (TOP)

CE, cUL, TUV, UL

12 VDC

80 mm

32 mm

Mechatronics Fan Group

G8032X12B1-RSR

3 Wire Leads

Ball

129.73 g

0.286 lb

Tubeaxial

Polybutylene Terephthalate (PBT)

Speed Sensor (Tach), Thermal Overload Protector (TOP)

CE, cUL, TUV, UL

12 VDC

80 mm

32 mm

Mechatronics Fan Group

G8032H12B1-RSR-TTL

3 Wire Leads

Ball

4000 RPM

129.73 g

0.286 lb

Tubeaxial

Polybutylene Terephthalate (PBT)

Speed Sensor (Tach), Thermal Overload Protector (TOP)

CE, cUL, TUV, UL

92.2 Pa

0.37 in H2O

12 VDC

80 mm

450 mA

42 dB

32 mm

1.34 m³/min

48 CFM

Part	Termination	Bearing Type	RPM	Weight	Weight	Fan Type	Material - Blade	Features	Approval Agency	Static Pressure	Static Pressure	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	Noise	Width [y]	Air Flow	Air Flow	Ingress Protection
Mechatronics Fan Group G8032L12B1-RSR	3 Wire Leads	Ball	3000 RPM	129.73 g	0.286 lb	Tubeaxial	Polybutylene Terephthalate (PBT)	Speed Sensor (Tach), Thermal Overload Protector (TOP)	CE, cUL, TUV, UL	49.8 Pa	0.2 in H2O	12 VDC	80 mm	80 mm	0.2 A	34 dB(A)	32 mm	0.952 m³/min	34 CFM
Mechatronics Fan Group G8032S24B-RSR	2 Wire Leads	Ball	2500 RPM	129.73 g	0.286 lb	Tubeaxial	Polybutylene Terephthalate (PBT)	Thermal Overload Protector (TOP)	CE, cUL, TUV, UL			24 VDC	80 mm	80 mm	100 mA	30 dB(A)	32 mm	0.812 mł/min	29 CFM
Mechatronics Fan Group G8032L05B-RSR	2 Wire Leads	Ball	3000 RPM	129.73 g	0.286 lb	Tubeaxial	Polybutylene Terephthalate (PBT)	Thermal Overload Protector (TOP)	CE, cUL, TUV, UL	49.8 Pa	0.2 in H2O	5 V	80 mm	80 mm	0.25 A	34 dB(A)	32 mm	0.952 m³/min	34 CFM
Mechatronics Fan Group G8032E24B1-RSR-WS	4 Wire Leads	Ball	4500 RPM	129.73 g	0.286 lb	Tubeaxial	Polybutylene Terephthalate (PBT)	Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	CE, cUL, TUV, UL	109.6 Pa	0.44 in H2O	24 VDC	80 mm	80 mm	0.33 A	46 dB(A)	32 mm	1.46 mł/min	52 CFM
Mechatronics Fan Group G8032M24B-RSR-EM	2 Wire Leads	Ball	3500 RPM	129.73 g	0.286 lb	Tubeaxial	Polybutylene Terephthalate (PBT)	Thermal Overload Protector (TOP)	CE, cUL, TUV, UL	72.2 Pa	0.29 in H2O	24 VDC	80 mm	80 mm	0.2 A	38 dB(A)	32 mm	1.15 mł/min	41 CFM	IP57 - Dust Protected, Waterproof
Mechatronics Fan Group G8032M24B1-RSR	3 Wire Leads	Ball	3500 RPM	129.73 g	0.286 lb	Tubeaxial	Polybutylene Terephthalate (PBT)	Speed Sensor (Tach), Thermal Overload Protector (TOP)	CE, cUL, TUV, UL	72.2 Pa	0.29 in H2O	24 VDC	80 mm	80 mm	0.2 A	38 dB(A)	32 mm	1.15 mł/min	41 CFM
Mechatronics Fan Group G8032H12B1-RSR-EM	3 Wire Leads	Ball	4000 RPM	129.73 g	0.286 lb	Tubeaxial	Polybutylene Terephthalate (PBT)	Speed Sensor (Tach), Thermal Overload Protector (TOP)	CE, cUL, TUV, UL	92.2 Pa	0.37 in H2O	12 VDC	80 mm	80 mm	450 mA	42 dB	32 mm	1.34 m³/min	48 CFM	IP57 - Dust Protected, Waterproof
Mechatronics Fan Group G8032X12B-RSR	2 Wire Leads	Ball		129.73 g	0.286 lb	Tubeaxial	Polybutylene Terephthalate (PBT)	Thermal Overload Protector (TOP)	CE, cUL, TUV, UL			12 VDC	80 mm	80 mm			32 mm
Mechatronics Fan Group G8032X12B1-RSR	3 Wire Leads	Ball		129.73 g	0.286 lb	Tubeaxial	Polybutylene Terephthalate (PBT)	Speed Sensor (Tach), Thermal Overload Protector (TOP)	CE, cUL, TUV, UL			12 VDC	80 mm	80 mm			32 mm
Mechatronics Fan Group G8032H12B1-RSR-TTL	3 Wire Leads	Ball	4000 RPM	129.73 g	0.286 lb	Tubeaxial	Polybutylene Terephthalate (PBT)	Speed Sensor (Tach), Thermal Overload Protector (TOP)	CE, cUL, TUV, UL	92.2 Pa	0.37 in H2O	12 VDC	80 mm	80 mm	450 mA	42 dB	32 mm	1.34 m³/min	48 CFM
