GLF1100-T1G7

Active

GLF Integrated Power

LOADSWITCH WITH OUTPUT DISCHARGE

Search across all available documentation for this part.

Active

GLF Integrated Power

LOADSWITCH WITH OUTPUT DISCHARGE

Technical Specifications

Parameters and characteristics for this part

Specification	GLF1100-T1G7

Current - Output (Max) [Max]	2 A
Features	Slew Rate Controlled, Load Discharge
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	P-Channel

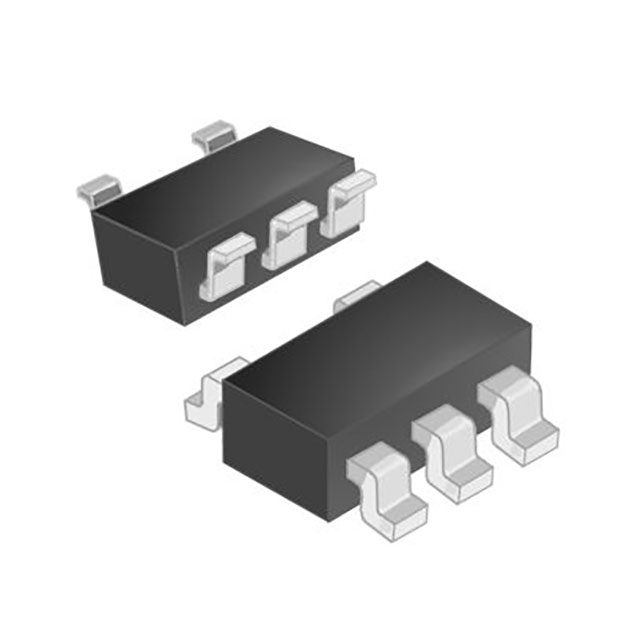

Package / Case	SC-74A, SOT-753
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	82 mOhm
Supplier Device Package	SOT-23-5
Switch Type	General Purpose
Voltage - Load [Max]	5.5 V
Voltage - Load [Min]	1.1 V
Voltage - Supply (Vcc/Vdd)	False

LOADSWITCH WITH OUTPUT DISCHARGE

Part	Supplier Device Package	Mounting Type	Switch Type	Number of Outputs	Ratio - Input:Output [custom]	Current - Output (Max) [Max]	Input Type	Voltage - Load [Min]	Voltage - Load [Max]	Interface	Output Type	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Rds On (Typ)	Voltage - Supply (Vcc/Vdd)	Features
GLF Integrated Power GLF1100-T1G7	SOT-23-5	Surface Mount	General Purpose	1	1:1	2 A	Non-Inverting	1.1 V	5.5 V	On/Off	P-Channel	High Side	85 °C	-40 °C	SC-74A, SOT-753	82 mOhm		Load Discharge, Slew Rate Controlled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Switch/Driver 1:1 P-Channel 2A SOT-23-5
