880642-1

Active

TE Connectivity AMP Connectors

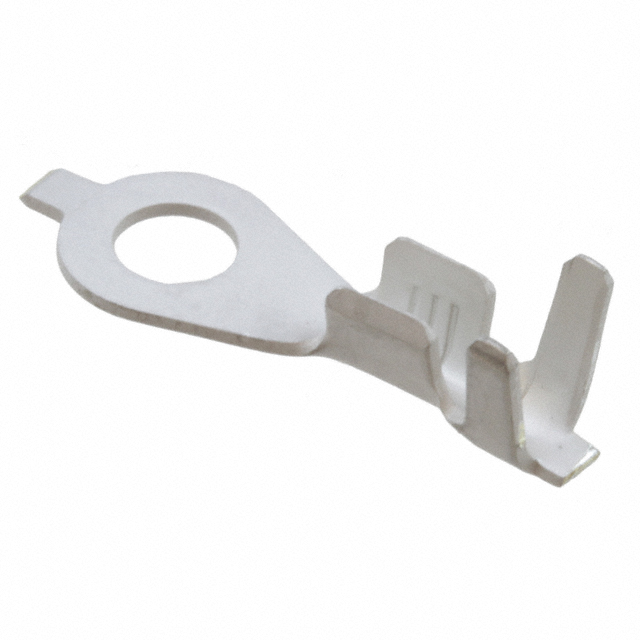

CONN RING CIRC 13-17AWG CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RING CIRC 13-17AWG CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.20
	Digi-Reel®	1	$ 0.20
	Tape & Reel (TR)	100000	$ 0.06

General part information

Ring Terminal Connector Circular 13-17 AWG Crimp

Technical documentation and resources

Specification	880642-1	880642 Series

Contact Finish	-	Tin
Contact Material	Brass	Brass
Insulation	Non-Insulated	Non-Insulated
Insulation Diameter [Max] [diameter]	3.99 mm	3.99 mm
Insulation Diameter [Max] [diameter]	0.157 in	0.157 in
Insulation Diameter [Min] [diameter]	0.106 in	0.106 in
Insulation Diameter [Min] [diameter]	2.69 mm	2.69 mm
Length - Overall [x]	0.78 in	0.78 in
Length - Overall [x]	19.81 mm	19.81 mm
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Terminal Type	Circular	Circular
Termination	Crimp	Crimp
Thickness	0.024 in	0.024 in
Thickness	0.61 mm	0.61 mm
Width - Outer Edges	8.1 mm	8.1 mm
Width - Outer Edges [x]	0.319 "	0.319 "
Wire Gauge [Max]	17 AWG	17 AWG
Wire Gauge [Min]	13 AWG	13 AWG

Part	Contact Material	Terminal Type	Insulation	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Thickness	Thickness	Mounting Type	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges	Width - Outer Edges [x]	Termination	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish
TE Connectivity AMP Connectors 880642-1	Brass	Circular	Non-Insulated	3.99 mm	0.106 in	0.157 in	2.69 mm	0.024 in	0.61 mm	Free Hanging (In-Line)	0.78 in	19.81 mm	8.1 mm	0.319 "	Crimp	13 AWG	17 AWG
TE Connectivity AMP Connectors 880642-2	Brass	Circular	Non-Insulated	3.99 mm	0.106 in	0.157 in	2.69 mm	0.024 in	0.61 mm	Free Hanging (In-Line)	0.78 in	19.81 mm	8.1 mm	0.319 "	Crimp	13 AWG	17 AWG	Tin
