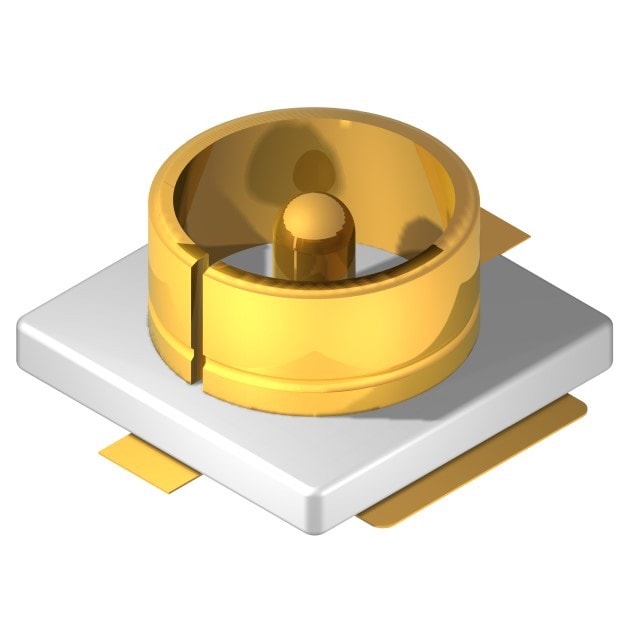

SCNRF-6AAN-P1FS

Active

Suntsu Electronics, Inc

CONN IPEX JACK STR 50 OHMS

Search across all available documentation for this part.

Active

Suntsu Electronics, Inc

CONN IPEX JACK STR 50 OHMS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SCNRF-6AAN-P1FS	SCNRF-6AAN Series

Body Finish	Gold	Gold
Body Material	Brass	Brass
Center Contact Material	Copper Alloy	Beryllium Copper, Copper Alloy
Center Contact Plating	Gold	Gold
Connector Style	IPEX MHFI, Ultra Miniature (UM)	SMA, IPEX MHFI, Ultra Miniature (UM)
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Solder	Solder
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On	Snap-On
Features	-	Extended Insulation
Frequency - Max [Max]	6000 MHz	6000 MHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Mounting Feature	-	Flange
Number of Ports	1	1
Operating Temperature [Max]	90 °C	85 - 90 °C
Operating Temperature [Min]	-40 °C	-55 - -40 °C
Shield Termination	Solder	Solder
Voltage Rating	200 V	200 - 335 V

CONN SMA JACK STR 50 OHMS

Part	Connector Style	Shield Termination	Dielectric Material	Features	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Center Contact Material	Connector Type	Impedance	Housing Color	Voltage Rating	Body Material	Body Finish	Center Contact Plating	Mounting Feature	Frequency - Max [Max]	Contact Termination	Fastening Type
Suntsu Electronics, Inc SCNRF-6AAN-SAFS	SMA	Solder	Polytetrafluoroethylene (PTFE)	Extended Insulation	85 °C	-55 °C	1	Beryllium Copper	Female Socket, Jack	50 Ohms	Gold	335 V	Brass	Gold	Gold	Flange	6000 MHz	Solder
Suntsu Electronics, Inc SCNRF-6AAN-P1FS	IPEX MHFI, Ultra Miniature (UM)	Solder			90 °C	-40 °C	1	Copper Alloy	Female Socket, Jack	50 Ohms	Gold	200 V	Brass	Gold	Gold		6000 MHz	Solder	Snap-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ultra Miniature (UM), IPEX MHFI Connector Jack, Female Socket 50 Ohms Panel Mount Solder
