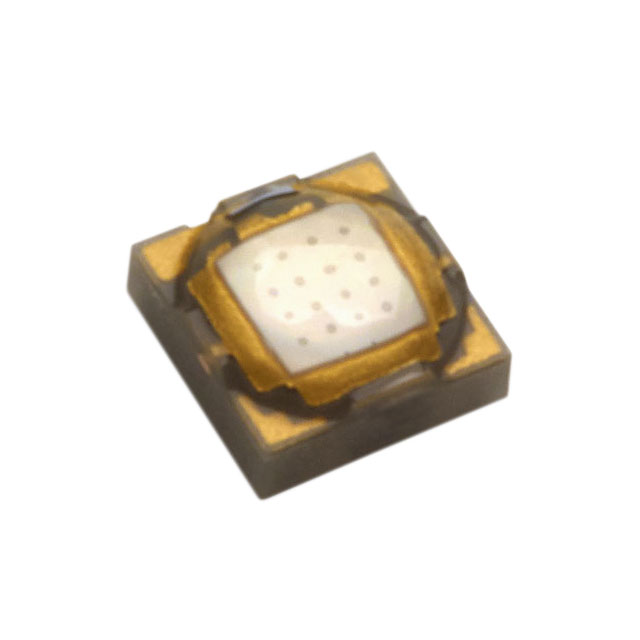

L1C1-GRN1000000000

Active

Lumileds

LED UNI-COLOR GREEN 97LM CHIP LED 3-PIN SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet LUXEON C Color Line Assembly, Handling +1

L1C1-GRN1000000000

Active

Lumileds

LED UNI-COLOR GREEN 97LM CHIP LED 3-PIN SMD T/R

Deep-Dive with AI

DocumentsDatasheet LUXEON C Color Line Assembly, Handling +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.46
		10	$ 1.78
		100	$ 1.37
		500	$ 1.19
	Digi-Reel®	1	$ 2.46
		10	$ 1.78
		100	$ 1.37
		500	$ 1.19
	Tape & Reel (TR)	1000	$ 1.13
		2000	$ 1.08
		3000	$ 1.06
		5000	$ 1.03
		7000	$ 1.01
		10000	$ 0.99

Description

General part information

L1C1 Series

The LUXEON C Color Line is an optically advanced portfolio of Color and White LEDs. Designed for flawless color mixing, LUXEON C Color Line has one focal length for all colors, which provides consistent radiation patterns from secondary optics and maximizes optical efficiency. With low dome design, it keeps effective source size small while still improving light extraction. Designed for smooth color mixing and maximum punch, LUXEON C Color Line is the optimal LED solution for architecture, emergency vehicle lighting and horticulture lighting applications.One focal length allows flawless color mixing, maximum optical efficiency and removes halos Low dome design eliminates trade-offs between flux and source size Hot tested-removes guesswork for designers Industry’s lowest thermal resistance means greater light output and lower heatsink costs Small symmetrical 2x2mm² package enables dense packing and limits the impact of rotation during reflow

Documents

Technical documentation and resources

Datasheet

LUXEON C Color Line Assembly, Handling

Datasheet

LUXEON C Color Line Brief

Datasheet

Specification	L1C1-GRN1000000000	L1C1 Series

CCT (K)	-	2200 - 6500 K
Color	Green	White, Warm, Blue, Cool, Green, Neutral
CRI (Color Rendering Index)	-	70 - 90
Current - Max [Max]	1.05 A	1.05 - 1.225 A
Current - Test	350 mA	350 mA
Flux @ 85°C, Current - Test	-	82 - 119 lm
Height - Seated (Max) [Max]	1.5 mm	1.5 mm
Height - Seated (Max) [Max] [z]	0.059 "	0.059 "
Lumens/Watt @ Current - Test	108 lm/W	48 - 152 lm/W
Luminous Flux @ Current/Temperature	115 lm	52 - 506 lm
Luminous Flux @ Current/Temperature	-	140 lm
Luminous Flux @ Current/Temperature	-	152 lm
Mounting Type	Surface Mount	Surface Mount
Package / Case	0707, 1919 Metric	0707, 1919 Metric
Package / Case	-	3-SMD, No Lead, 2-SMD, No Lead
Size / Dimension [x]	2 mm	2 mm
Size / Dimension [x]	0.079 in	0.079 in
Size / Dimension [y]	2 mm	2 mm
Size / Dimension [y]	0.079 in	0.079 in
Supplier Device Package	SMD	SMD
Temperature - Test	85 °C	85 °C
Thermal Resistance of Package	-	2.8 °C/W
Thermal Resistance of Package [custom]	3.5 °C/W	3.5 °C/W
Viewing Angle	170 °	150 - 170 °
Voltage - Forward (Vf) (Typ)	3.05 V	2.75 - 3.08 V
Wavelength	530 nm	530 nm
Wavelength [Max]	540 nm	460 - 540 nm
Wavelength [Min]	520 nm	440 - 520 nm

Part

Voltage - Forward (Vf) (Typ)

Current - Max [Max]

Lumens/Watt @ Current - Test

Thermal Resistance of Package [diameter]

CRI (Color Rendering Index)

Size / Dimension [y]

Size / Dimension [x]

Size / Dimension [y]

Size / Dimension [x]

Height - Seated (Max) [Max]

Height - Seated (Max) [Max] [z]

Viewing Angle

Flux @ 85°C, Current - Test

Color

Mounting Type

Current - Test

Package / Case

Luminous Flux @ Current/Temperature

Temperature - Test

CCT (K)

Supplier Device Package

Wavelength [Min]

Wavelength [Max]

Package / Case

Luminous Flux @ Current/Temperature [Min]

Luminous Flux @ Current/Temperature [Max]

Thermal Resistance of Package [custom]

Wavelength

Lumileds

L1C1-3090000000000

2.75 V

1.225 A

89 lm/W

2.8 °C/W

2 mm

0.079 in

1.5 mm

0.059 "

150 °

86 lm

Warm, White

Surface Mount

350 mA

3-SMD, No Lead

Lumileds

L1C1-PCB1000000000

3.08 V

1.05 A

48 lm/W

2 mm

0.079 in

1.5 mm

0.059 "

161 °

Blue

Surface Mount

350 mA

2-SMD, No Lead

52 lm

85 °C

Lumileds

L1C1-6570000000000

2.75 V

1.225 A

2.8 °C/W

2 mm

0.079 in

1.5 mm

0.059 "

150 °

119 lm

Cool, White

Surface Mount

350 mA

2-SMD, No Lead

6500 K

Lumileds

L1C1-RYL1000000000

2.75 V

1.05 A

2.8 °C/W

2 mm

0.079 in

1.5 mm

0.059 "

165 °

Blue

Surface Mount

350 mA

506 mW

85 °C

SMD

440 nm

460 nm

0707, 1919 Metric

Lumileds

L1C1-2280000000000

2.75 V

1.225 A

88 lm/W

2.8 °C/W

2 mm

0.079 in

1.5 mm

0.059 "

150 °

85 lm

Warm, White

Surface Mount

350 mA

3-SMD, No Lead

2200 K

Lumileds

L1C1-3580000000000

2.75 V

1.225 A

112 lm/W

2.8 °C/W

2 mm

0.079 in

1.5 mm

0.059 "

150 °

108 lm

Warm, White

Surface Mount

350 mA

3-SMD, No Lead

3500 K

Lumileds

L1C1-5070000000000

2.75 V

1.225 A

122 lm/W

2.8 °C/W

2 mm

0.079 in

1.5 mm

0.059 "

150 °

117 lm

Cool, White

Surface Mount

350 mA

3-SMD, No Lead

5000 K

Lumileds

L1C1-LME1000000000

2.75 V

1.225 A

152 lm/W

2.8 °C/W

2 mm

0.079 in

1.5 mm

0.059 "

150 °

Green

Surface Mount

350 mA

146 lm

85 °C

SMD

0707, 1919 Metric

140 lm

152 lm

Lumileds

L1C1-4080000000000

2.75 V

1.225 A

121 lm/W

2.8 °C/W

2 mm

0.079 in

1.5 mm

0.059 "

150 °

116 lm

Neutral, White

Surface Mount

350 mA

4000 K

SMD

0707, 1919 Metric

Lumileds

L1C1-2790000000000

2.75 V

1.225 A

85 lm/W

2.8 °C/W

2 mm

0.079 in

1.5 mm

0.059 "

150 °

82 lm

Warm, White

Surface Mount

350 mA

3-SMD, No Lead

2700 K

Part	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Lumens/Watt @ Current - Test	Thermal Resistance of Package [diameter]	CRI (Color Rendering Index)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Viewing Angle	Flux @ 85°C, Current - Test	Color	Mounting Type	Current - Test	Package / Case	Luminous Flux @ Current/Temperature	Temperature - Test	CCT (K)	Supplier Device Package	Wavelength [Min]	Wavelength [Max]	Package / Case	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]
Lumileds L1C1-3090000000000	2.75 V	1.225 A	89 lm/W	2.8 °C/W	90	2 mm	2 mm	0.079 in	0.079 in	1.5 mm	0.059 "	150 °	86 lm	Warm, White	Surface Mount	350 mA	3-SMD, No Lead
Lumileds L1C1-PCB1000000000	3.08 V	1.05 A	48 lm/W			2 mm	2 mm	0.079 in	0.079 in	1.5 mm	0.059 "	161 °		Blue	Surface Mount	350 mA	2-SMD, No Lead	52 lm	85 °C
Lumileds L1C1-6570000000000	2.75 V	1.225 A		2.8 °C/W	70	2 mm	2 mm	0.079 in	0.079 in	1.5 mm	0.059 "	150 °	119 lm	Cool, White	Surface Mount	350 mA	2-SMD, No Lead			6500 K
Lumileds L1C1-RYL1000000000	2.75 V	1.05 A		2.8 °C/W		2 mm	2 mm	0.079 in	0.079 in	1.5 mm	0.059 "	165 °		Blue	Surface Mount	350 mA		506 mW	85 °C		SMD	440 nm	460 nm	0707, 1919 Metric
Lumileds L1C1-2280000000000	2.75 V	1.225 A	88 lm/W	2.8 °C/W	80	2 mm	2 mm	0.079 in	0.079 in	1.5 mm	0.059 "	150 °	85 lm	Warm, White	Surface Mount	350 mA	3-SMD, No Lead			2200 K
Lumileds L1C1-3580000000000	2.75 V	1.225 A	112 lm/W	2.8 °C/W	80	2 mm	2 mm	0.079 in	0.079 in	1.5 mm	0.059 "	150 °	108 lm	Warm, White	Surface Mount	350 mA	3-SMD, No Lead			3500 K
Lumileds L1C1-5070000000000	2.75 V	1.225 A	122 lm/W	2.8 °C/W	70	2 mm	2 mm	0.079 in	0.079 in	1.5 mm	0.059 "	150 °	117 lm	Cool, White	Surface Mount	350 mA	3-SMD, No Lead			5000 K
Lumileds L1C1-LME1000000000	2.75 V	1.225 A	152 lm/W	2.8 °C/W		2 mm	2 mm	0.079 in	0.079 in	1.5 mm	0.059 "	150 °		Green	Surface Mount	350 mA		146 lm	85 °C		SMD			0707, 1919 Metric	140 lm	152 lm
Lumileds L1C1-4080000000000	2.75 V	1.225 A	121 lm/W	2.8 °C/W	80	2 mm	2 mm	0.079 in	0.079 in	1.5 mm	0.059 "	150 °	116 lm	Neutral, White	Surface Mount	350 mA				4000 K	SMD			0707, 1919 Metric
Lumileds L1C1-2790000000000	2.75 V	1.225 A	85 lm/W	2.8 °C/W	90	2 mm	2 mm	0.079 in	0.079 in	1.5 mm	0.059 "	150 °	82 lm	Warm, White	Surface Mount	350 mA	3-SMD, No Lead			2700 K
