CG202U075U3C
ActiveCornell Dubilier Knowles

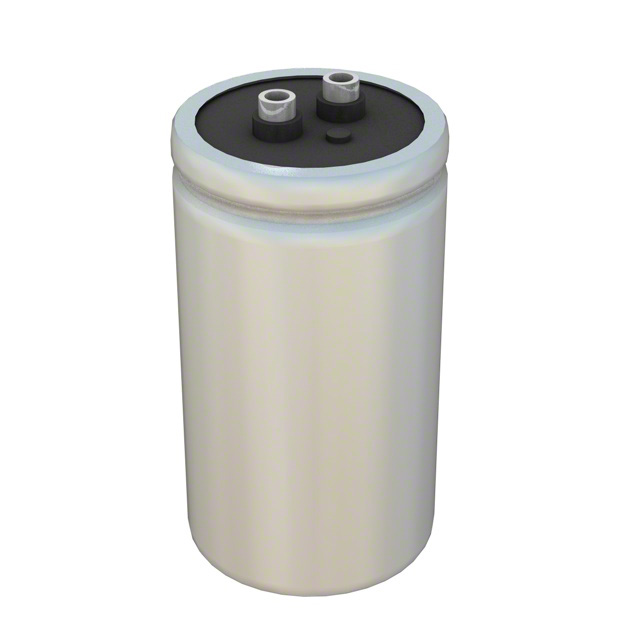

CAP ALUM 2000UF 75V SCREW CHAS M
CG202U075U3C
ActiveCornell Dubilier Knowles
CAP ALUM 2000UF 75V SCREW CHAS M
Description
General part information
CG202U075U3C
2000 µF 75 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 39mOhm @ 120Hz 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | CG202U075U3C |
|---|---|
| Applications | General Purpose |
| Capacitance | 2000 µF |
| ESR (Equivalent Series Resistance) | 39 mOhm |
| Height - Seated (Max) | 3.125 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 5.8 A, 6.67 A |
| Size / Dimension Diameter | 1.75 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 75 % |
| Voltage - Rated | 75 V |
