1408332-1

Active

TE Connectivity AMP Connectors

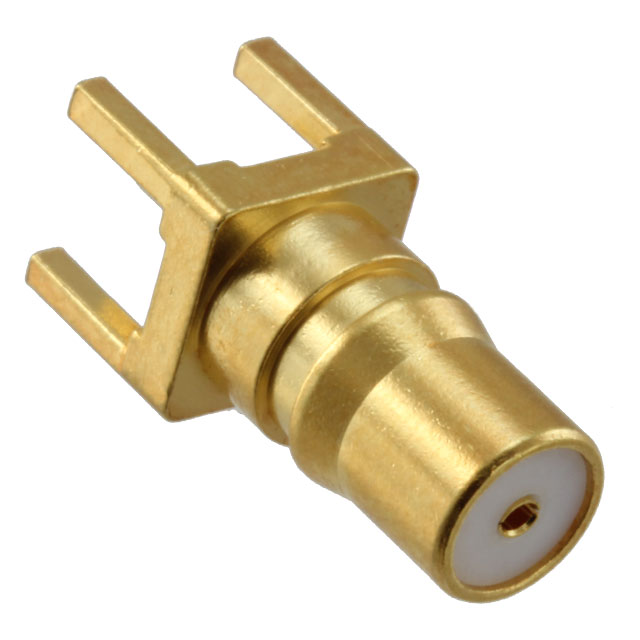

CONN QMA JACK STR 50 OHM PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QMA JACK STR 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	1408332-1

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.25 dB
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	335 V

CONN QMA JACK STR 50 OHM PCB

Part	Contact Termination	Shield Termination	Center Contact Material	Frequency - Max [Max]	Fastening Type	Body Finish	Dielectric Material	Insertion Loss	Center Contact Plating	Housing Color	Body Material	Mounting Type	Impedance	Number of Ports	Connector Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity AMP Connectors 1408332-1	Solder	Solder	Beryllium Copper	6000 MHz	Snap-On	Gold	Polytetrafluoroethylene (PTFE)	0.25 dB	Gold	Gold	Brass	Through Hole	50 Ohms	1	Female Socket, Jack	335 V	-40 °C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

QMA Connector Jack, Female Socket 50 Ohms Through Hole Solder
