B82144B2474J000
ActiveEPCOS - TDK Electronics
FIXED IND 470UH 600MA 2.02OHM TH
B82144B2474J000
ActiveEPCOS - TDK Electronics
FIXED IND 470UH 600MA 2.02OHM TH
Description
General part information
B82144B2474J000

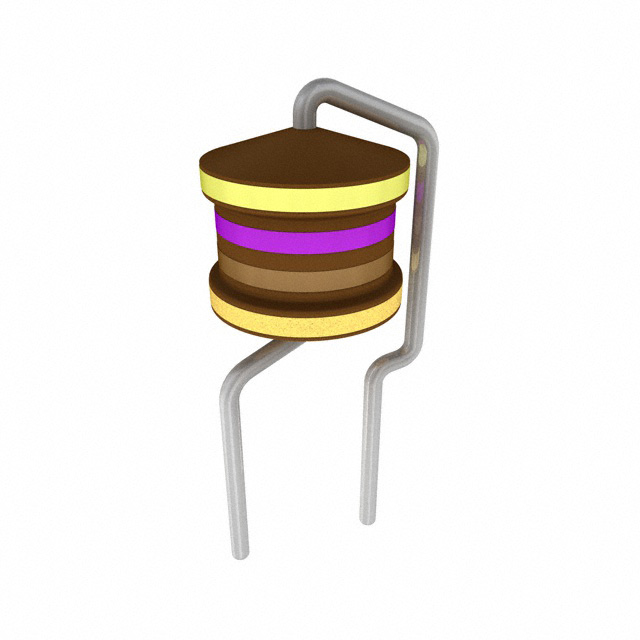

470 µH Unshielded Drum Core, Wirewound Inductor 600 mA 2.02Ohm Max Radial, Vertical Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | B82144B2474J000 |
|---|---|
| Current - Saturation (Isat) | 0.44 mA |
| Current Rating | 600 mA |
| DC Resistance (DCR) (Max) | 2.02 Ohm |
| Frequency - Self Resonant | 2.3 MHz |
| Height - Seated (Max) | 0.551 in |
| Inductance | 0.47 mH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Vertical Cylinder, Radial |
| Q | 40 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.256 in |
| Tolerance | 5 % |
| Type | Drum Core, Wirewound |
