HF625/18-100M

Active

CBL RIBN 18COND 0.039 GRAY 98.4'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HF625/18-100M

Active

CBL RIBN 18COND 0.039 GRAY 98.4'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 275.32
		1	$ 54.40
		1	$ 133.47
		1	$ 210.02

Description

General part information

HF625 Series

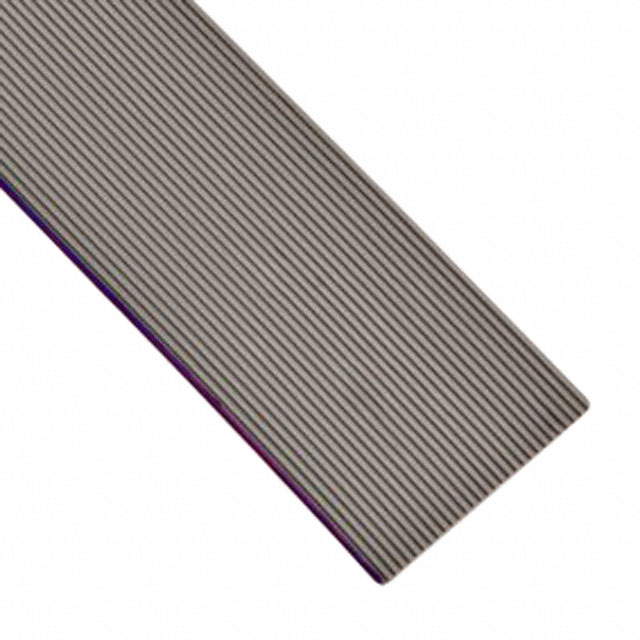

Flat Ribbon Cable Gray 18 Conductors 0.039" (1.00mm) Flat Cable 98.4' (30.00m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HF625/18-100M	HF625 Series

Cable Type	Flat Cable	Flat Cable
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	36 AWG	36 AWG
Features	Zippable	Zippable
First Conductor Mark	Red	Red
Jacket (Insulation) Material	Polyolefin (PO)	Polyolefin (PO)
Jacket Color	Gray	Gray
Length	50 m, 30 m, 70 m	1 - 100 m
Length	164 ft, 98.4 ft, 229.7 ft	3.28 - 328.1 ft
Length	-	Enter Number of Meters in Order Quantity
Number of Conductors	18	6 - 50
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Ratings	UL Style 21682	UL Style 21682
Ribbon Thickness	0.89 mm	0.89 mm
Ribbon Thickness	0.035 in	0.035 in
Ribbon Width	-	1.181 - 40 mm
Ribbon Width	-	0.236 - 1.575 in
Ribbon Width	-	10 - 43.99 mm
Ribbon Width	-	0.394 - 1.732 in
Ribbon Width	-	30 - 35.99 mm
Ribbon Width	-	0.472 - 1.969 in
Ribbon Width	-	11.99 - 50.01 mm
Ribbon Width [y]	18.01 mm	16 - 34 mm
Ribbon Width [y]	0.709 in	0.63 - 1.339 "
Shielding	Unshielded	Unshielded
Spool Size	-	328.1 '
Spool Size	-	100 m
Voltage	300 V	300 V
Wire Gauge	28 AWG	28 AWG

HF625 Series

CBL RIBN 6COND 0.039 GRAY 32.8'

Part	First Conductor Mark	Operating Temperature [Min]	Operating Temperature [Max]	Features	Ribbon Thickness	Ribbon Thickness	Cable Type	Voltage	Length	Length	Ribbon Width	Ribbon Width	Wire Gauge	Shielding	Jacket Color	Ratings	Jacket (Insulation) Material	Pitch [x]	Pitch [x]	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Conductor Material	Ribbon Width [custom]	Ribbon Width [custom]	Ribbon Width	Ribbon Width [y]	Ribbon Width [y]
3M HF625/06-100M	Red	-40 °C	105 ░C	Zippable	0.89 mm	0.035 in	Flat Cable	300 V	16.4 ', 98.4 ft	5 m, 30 m	6 mm	0.236 in	28 AWG	Unshielded	Gray	UL Style 21682	Polyolefin (PO)	0.039 in	1 mm	7	36 AWG	6	Copper, Tinned
3M HF625/44-30M	Red	-40 °C	105 ░C	Zippable	0.89 mm	0.035 in	Flat Cable	300 V	98.4 ft	30 m			28 AWG	Unshielded	Gray	UL Style 21682	Polyolefin (PO)	0.039 in	1 mm	7	36 AWG	44	Copper, Tinned	43.99 mm	1.732 in
3M HF625/22SF-100M	Red	-40 °C	105 ░C	Zippable	0.89 mm	0.035 in	Flat Cable	300 V	328.1 ft	100 m	22 mm	0.866 in	28 AWG	Unshielded	Gray	UL Style 21682	Polyolefin (PO)	0.039 in	1 mm	7	36 AWG	22	Copper, Tinned
3M HF625/36SF-30M	Red	-40 °C	105 ░C	Zippable	0.89 mm	0.035 in	Flat Cable	300 V	98.4 ft	30 m	1.417 in		28 AWG	Unshielded	Gray	UL Style 21682	Polyolefin (PO)	0.039 in	1 mm	7	36 AWG	36	Copper, Tinned			35.99 mm
3M HF625/20-100M	Red	-40 °C	105 ░C	Zippable	0.89 mm	0.035 in	Flat Cable	300 V	164 ft, 328.1 ft	50 m, 100 m	20 mm	0.787 in	28 AWG	Unshielded	Gray	UL Style 21682	Polyolefin (PO)	0.039 in	1 mm	7	36 AWG	20	Copper, Tinned
3M HF625/06SF-30M	Red	-40 °C	105 ░C	Zippable	0.89 mm	0.035 in	Flat Cable	300 V	98.4 ft	30 m	6 mm	0.236 in	28 AWG	Unshielded	Gray	UL Style 21682	Polyolefin (PO)	0.039 in	1 mm	7	36 AWG	6	Copper, Tinned
3M HF625/10-100M	Red	-40 °C	105 ░C	Zippable	0.89 mm	0.035 in	Flat Cable	300 V	164 ft, 229.7 ft	50 m, 70 m			28 AWG	Unshielded	Gray	UL Style 21682	Polyolefin (PO)	0.039 in	1 mm	7	36 AWG	10	Copper, Tinned	10 mm	0.394 in
3M HF625/34-100M	Red	-40 °C	105 ░C	Zippable	0.89 mm	0.035 in	Flat Cable	300 V	98.4 ft, 164 ft, 229.7 ft, 328.1 ft	30 m, 50 m, 70 m, 100 m			28 AWG	Unshielded	Gray	UL Style 21682	Polyolefin (PO)	0.039 in	1 mm	7	36 AWG	34	Copper, Tinned				1.339 "	34 mm
3M HF625/10SF-100M	Red	-40 °C	105 ░C	Zippable	0.89 mm	0.035 in	Flat Cable	300 V	328.1 ft	100 m			28 AWG	Unshielded	Gray	UL Style 21682	Polyolefin (PO)	0.039 in	1 mm	7	36 AWG	10	Copper, Tinned	10 mm	0.394 in
3M HF625/28SF-100M	Red	-40 °C	105 ░C	Zippable	0.89 mm	0.035 in	Flat Cable	300 V	328.1 ft	100 m	27.99 mm	1.102 in	28 AWG	Unshielded	Gray	UL Style 21682	Polyolefin (PO)	0.039 in	1 mm	7	36 AWG	28	Copper, Tinned
