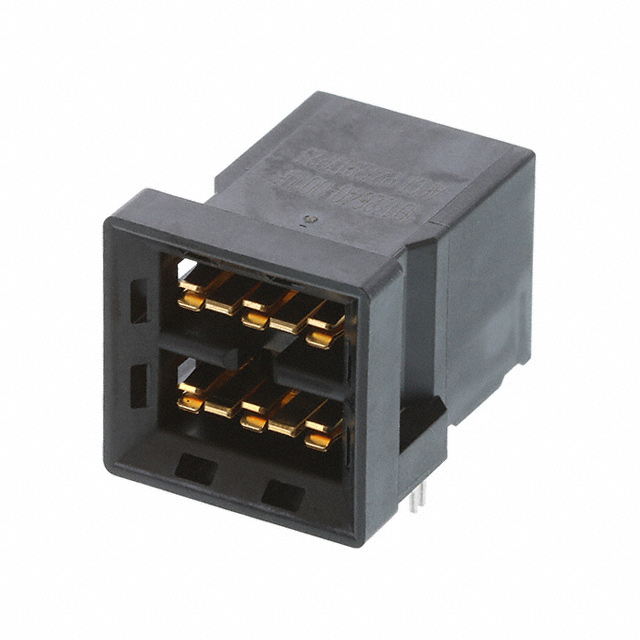

10132640-001LF

Active

Amphenol ICC (FCI)

CONN PLUG 4POS EDGE MNT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN PLUG 4POS EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	10132640-001LF

Color	Black
Connector Type	Plug
Connector Usage	Backplane, Orthogonal
Contact Layout, Typical	2 Signal, 2 Power
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Termination	Press-Fit
Voltage Rating	600 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Connector Usage	Connector Type	Mounting Type	Number of Positions	Number of Positions Loaded	Contact Layout, Typical	Voltage Rating	Termination	Number of Rows	Material Flammability Rating	Color
Amphenol ICC (FCI) 10132640-001LF	-40 °C	105 ░C	Backplane Orthogonal	Plug	Board Edge Right Angle Through Hole	4	All	2 Power 2 Signal	600 V	Press-Fit	2	UL94 V-0	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Connector Plug Board Edge, Through Hole, Right Angle Black
