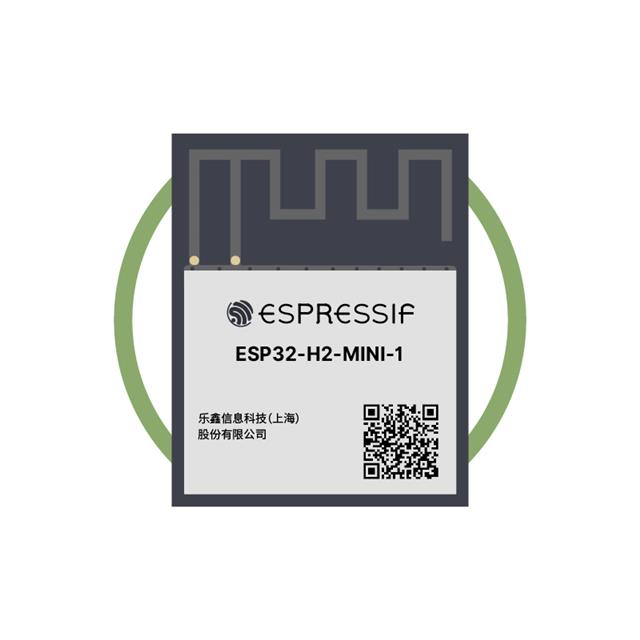

ESP32-H2-MINI-1-N2

Active

Espressif Systems

RF TXRX MOD BT WIFI PCB TH SMD

Search across all available documentation for this part.

Active

Espressif Systems

RF TXRX MOD BT WIFI PCB TH SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ESP32-H2-MINI-1-N2	ESP32-H2 Series

Antenna Type	PCB Trace	PCB Trace
For Use With/Related Products	-	ESP32-H2-MINI-1
Frequency	2.4 GHz	2.4 GHz
Memory Size	256 kB	256 kB
Mounting Type	Surface Mount	Surface Mount
Note	-	ADC not calibrated
Package / Case	53-SMD Module	53-SMD Module
Protocol	Zigbee®, Thread, Bluetooth v5.0	Zigbee®, Thread, Bluetooth v5.0
RF Family/Standard	WiFi, Bluetooth, 802.15.4	WiFi, Bluetooth, 802.15.4
Serial Interfaces	I2C, SPI, USB, PWM, UART, I2S	I2C, SPI, USB, PWM, UART, I2S
Supplied Contents	-	Board(s)
Type	-	Transceiver, Bluetooth® Smart 4.x Low Energy (BLE), 802.15.4 (ZigBee®)

ESP32-H2-DEVKITM-1 IS AN ENTRY-L

Part	Type	Supplied Contents	For Use With/Related Products	Note	Frequency	Memory Size	RF Family/Standard	Serial Interfaces	Protocol	Package / Case	Mounting Type	Antenna Type
Espressif Systems ESP32-H2-DEVKITM-1-N4	802.15.4 (ZigBee®), Bluetooth® Smart 4.x Low Energy (BLE), Transceiver	Board(s)	ESP32-H2-MINI-1	ADC not calibrated
Espressif Systems ESP32-H2-MINI-1-N4					2.4 GHz	256 kB	802.15.4, Bluetooth, WiFi	I2C, I2S, PWM, SPI, UART, USB	Bluetooth v5.0, Thread, Zigbee®	53-SMD Module	Surface Mount	PCB Trace
Espressif Systems ESP32-H2-MINI-1-N2					2.4 GHz	256 kB	802.15.4, Bluetooth, WiFi	I2C, I2S, PWM, SPI, UART, USB	Bluetooth v5.0, Thread, Zigbee®	53-SMD Module	Surface Mount	PCB Trace

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.99
	Digi-Reel®	1	$ 1.99
	Tape & Reel (TR)	650	$ 1.99

General part information

802.15.4, Bluetooth, WiFi Bluetooth v5.0, Thread, Zigbee® Transceiver Module 2.4GHz PCB Trace Surface Mount
