DPM6S47K-F
ActiveCornell Dubilier Knowles
CAP FILM 0.047UF 10% 630VDC RAD
DPM6S47K-F
ActiveCornell Dubilier Knowles
CAP FILM 0.047UF 10% 630VDC RAD
Description
General part information

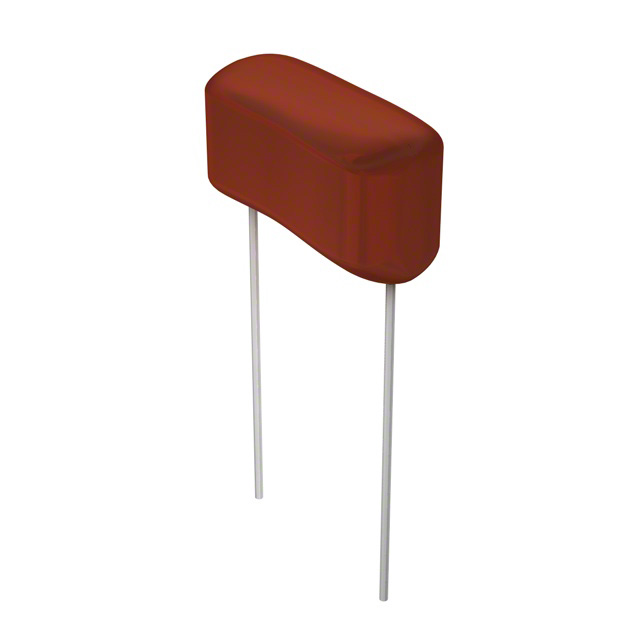

DPM6S47K-F
0.047 µF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | DPM6S47K-F |
|---|---|
| Applications | Switching, DC Link, DC Filtering, High Frequency |
| Capacitance | 47 nF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Features | Low ESL, Low ESR |
| Height - Seated (Max) | 0.709 in |
| Lead Spacing | 0.591 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.713 in |
| Size / Dimension Width | 0.354 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 630 V |
