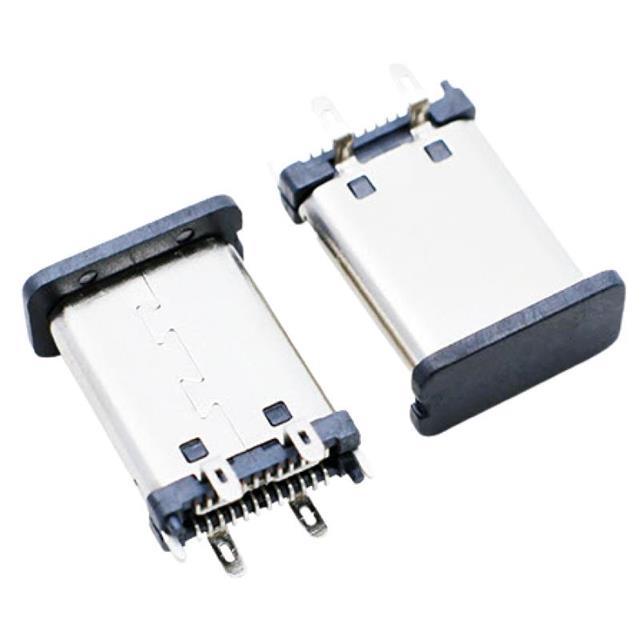

A-USBC-32F1-EA-GRR04
ActiveAssmann WSW Components
CONN RCPT USB3.2 TYPC 24P SMD RA
A-USBC-32F1-EA-GRR04
ActiveAssmann WSW Components
CONN RCPT USB3.2 TYPC 24P SMD RA
Description
General part information
A-USBC-32F1-EA-GRR04
USB-C (USB TYPE-C) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | A-USBC-32F1-EA-GRR04 |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating Options | 0.25A, 1.5A, 5A, 1.25A |
| Gender | Receptacle |
| Insulation Color | Black |
| Mating Cycles | 10000 cycles |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Right Angle, Surface Mount |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Shell/Shielding Material | Steel, Stainless |
| Shielding | Shielded |
| Specifications | Superspeed (USB 3.0), USB 3.1 Gen 1, USB 3.2 Gen 1 |
| Termination | Solder |
| Voltage - Rated | 20 V |
