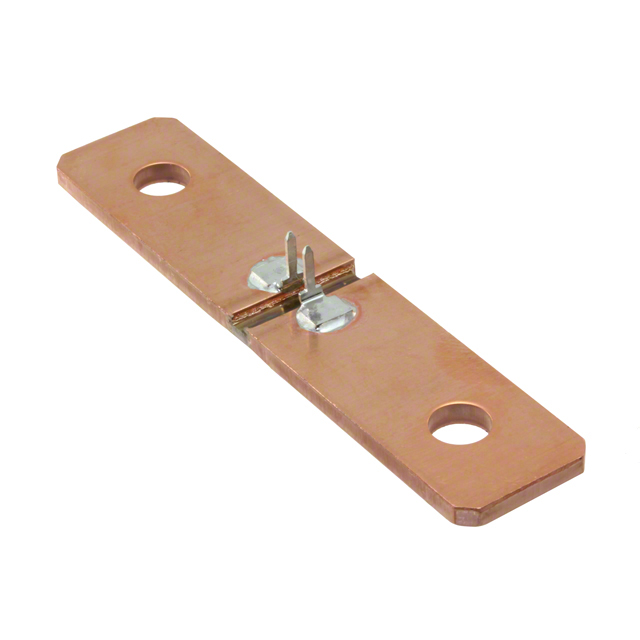

WSBS8518L2500JT20
ActiveVishay Dale
RESISTOR SHUNT 250 UOHM 5% 36W
WSBS8518L2500JT20
ActiveVishay Dale
RESISTOR SHUNT 250 UOHM 5% 36W
Description
General part information
WSBS8518L2500JT20
250 µOhms ±5% 36W Shunt, Battery Specialized Resistor Metal Element ±110ppm/°C Shunt Fixture, 60mm Pitch
Technical Specifications
Parameters and characteristics for this part
| Specification | WSBS8518L2500JT20 |
|---|---|
| Composition | Metal Element |
| Mounting Size | 60 mm |
| Mounting Type | Shunt Fixture, Pitch |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -65 °C |
| Power (Watts) | 36 W |
| Resistance | 0.25 mOhms |
| Temperature Coefficient | 110 ppm/°C |
| Tolerance | 5 % |
| Type | Battery, Shunt |
